Prerequisites

• Linear Algebra
• Classical mechanics
• Control theory:
  • First- and second-order system response
  • Transfer functions and feedback
• Basic Robotics
  • Joint-space vs. task-space
  • Kinematics and dynamics

General Motivation

_{PID Control - A Brief Introduction. YouTube video. Available at: https://www.youtube.com/watch?v=UR0hOmjaHp0}

In the world of robotics, simply giving a command is often not enough to get the desired result. An open-loop system, where we send a command without checking if it was executed correctly, is unreliable. Things like friction, changing loads, or unexpected disturbances can cause a system to fail without it ever knowing.

A controller addresses this fragility by closing the loop. Indeed, feedback control constantly measures the actual output, compares it to the desired output, and uses that error to adjust its command. This creates a loop that corrects itself until the system reaches its target.

Among all feedback controllers, the PID (Proportional-Integral-Derivative) is the most popular and effective. It’s so widespread because it offers a complete solution by combining three distinct actions to correct errors. Each of these terms addresses a specific part of the problem, allowing the controller to react to the current error, eliminate any lingering errors, and even anticipate future errors. This makes the PID controller a powerful tool to ensure systems are not only accurate but also stable and responsive.

Over the course of this lesson, you will learn how each of these components works and how to combine them to obtain the desired behavior from any system.

Course Content

Open-loop vs closed-loop control systems

A control system is a system designed to manage, command, direct or regulate the behavior of other devices or systems. These systems are integral to modern technology, ranging from simple household appliances to complex industrial machinery. At its core, a control system ensures that a desired response is achieved by actively controlling an output based on an input.

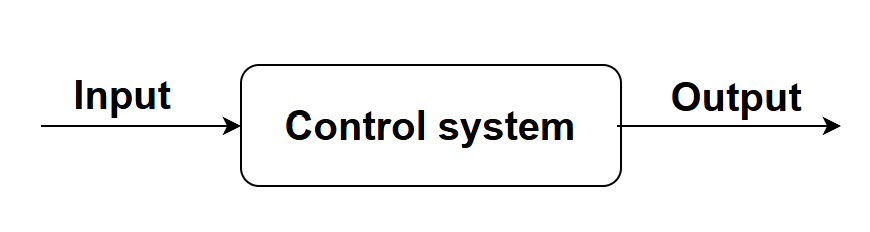

Consider a fundamental representation of a control system:

This system can be further broken down into two main components: the plant and the controller.

• The plant refers to the physical system or process to be controlled such as a motor, furnace, or traffic signal.
• The controller is the device or algorithm that determines the appropriate input to the plant to ensure the output behaves as desired.

From a control perspective, we are less concerned with the internal dynamics of the plant and more focused on providing the optimal command that leads the plant to perform in the intended way. While this command can be applied manually, an automated approach is often more reliable and efficient. But here’s the core challenge: how do we determine the exact command input that will lead to the desired plant’s behavior? There are two general approaches:

• Open-loop (Feedforward) control:

  _{MATLAB — Understanding Control Systems, Part 1: Open-Loop Control Systems. YouTube video. Available at: https://www.youtube.com/watch?v=FurC2unHeXI}

  This very short video introduces open-loop control through everyday examples and highlights why open-loop breaks under disturbances, setting up the need for feedback in the next section.

  The control action is independent of the system’s actual output. There is no measurement of the output that is fed back to influence or correct the input signal. The system relies solely on pre-determined inputs or a pre-programmed sequence of actions.

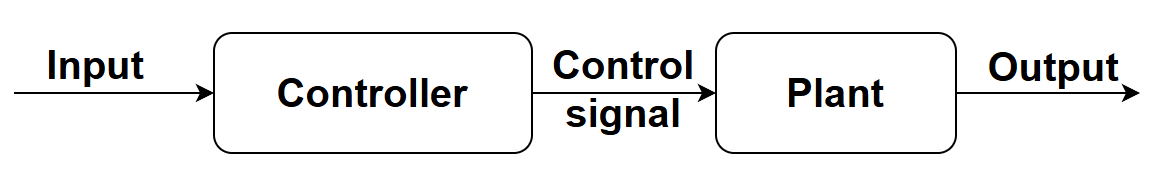

  Here, an input is processed by a controller, which generates an actuating or controlling signal. This signal is then fed into the plant, which in turn produces the controlled output. A straightforward example of an open-loop control system is a traffic light system. In its most basic form, a sequence of input signals (e.g., pre-programmed timing for each light) is applied. The system then outputs the illumination of red, yellow, or green lights for specified durations, while the other lights remain off. This time-based operation, determined by traffic studies at an intersection, exemplifies a control system where inputs directly dictate outputs.

  • Pros:
    • Simple to design and implement.
    • Generally more economical due to fewer components (no sensors or feedback mechanisms).
    • Requires less maintenance.
  • Cons:
    • Controller design needs full knowledge of the model
    • Less accurate and reliable, as it cannot self-correct for disturbances or inaccuracies in the system model.
    • Highly sensitive to changes in system parameters or external disturbances.
    • Cannot be used for systems that require the output to continuously track a varying setpoint without manual intervention.
    • Unable to stabilize inherently unstable systems.


• Closed-loop (feedback) control:

  _{MATLAB — Understanding Control Systems, Part 2: Feedback Control Systems. YouTube video. Available at: https://www.youtube.com/watch?v=5NVjIIi9fkY}

  This video explains why feedback is needed, defines setpoint–measurement–error, and shows how a controller uses error to reject disturbances and handle model variations. It is, therefore, a natural follow-on to the open-loop video and a bridge to PID.

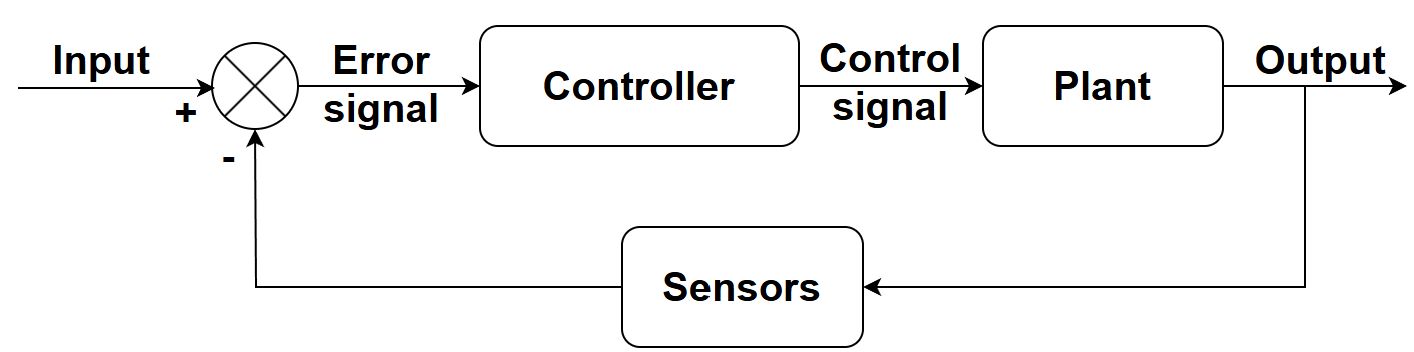

  It features a feedback path where the actual output is measured and continuously compared to the desired input (setpoint). The resulting difference, termed the error signal, is then used by the controller to adjust the control action. This mechanism allows the system to automatically correct any deviations from the desired output, making them highly adaptive and precise.



  In this setup, an error detector calculates the error signal by subtracting a feedback signal (derived from the measured output) from the input setpoint. This error signal, rather than the direct input, drives the controller. The controller, then, produces an actuating signal that drives the plant. This continuous adjustment ensures that the system’s output automatically converges towards the desired response. An advanced traffic light system that uses sensors to detect real-time traffic density and adjust light timings accordingly is an example of a closed-loop system.

  • Pros:
    • Feedback allows precise control by correcting deviations.
    • Automatically adjusts to disturbances or changes in the plant.
    • Can stabilize systems that would otherwise be unstable.
    • Reduces waste by optimizing performance continuously.
  • Cons:
    • More complex to design and implement.
    • Requires additional components (sensors, feedback paths).
    • Higher initial cost and maintenance.

Requirements of feedback control

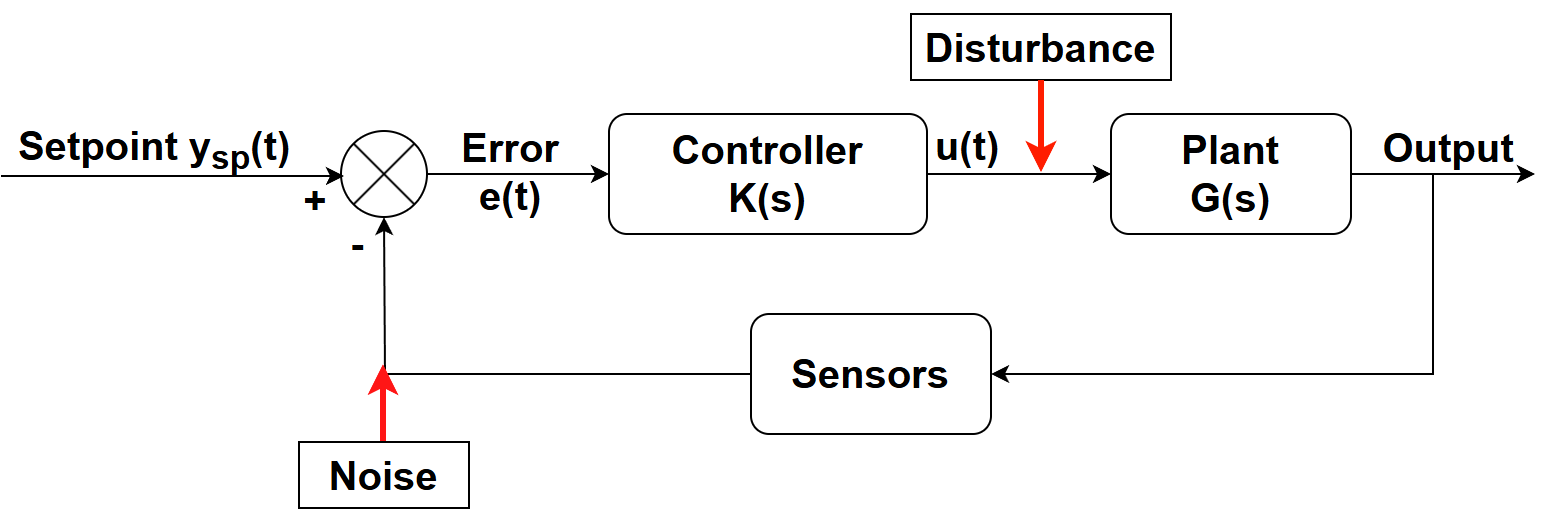

Feedback control is essential to achieve high-performance and reliable system operation. Several key requirements underscore its importance:

• Stability: A stable control system is one that, after being disturbed, either returns to its original equilibrium or reaches a new, desired equilibrium without exhibiting unbounded oscillations or runaway behavior. Without appropriate feedback, systems can become unstable, leading to erratic or potentially damaging operation. In more precise terms, internal stability is achieved if, for all initial conditions and all bounded signals injected at any place in the system, all states remain also bounded.
  Stability: basic reminder

  If you have opened this tab, it may mean that you are not very familiar with basic control theory. In this case, these videos can help you grasp the most important concepts:

  • Control systems review: LTI systems
  • Control systems review: Impulse response
  • Control systems review: Transfer functions
  • Control systems review: Closed-loop transfer functions

  A stable control system is one that, after being disturbed, either returns to its original equilibrium or reaches a new, desired equilibrium without exhibiting unbounded oscillations or runaway behavior. Without appropriate feedback, systems can become unstable, leading to erratic or potentially damaging operation. This is absolutely critical in robotics: an unstable system can make a robot arm vibrate violently, drift indefinitely, or even cause hardware damage. Stability ensures that the control commands you send lead to safe and reliable motions over time. Even without diving deep into control theory, it’s useful to understand that stability can be analyzed using the system’s transfer function which describes how outputs respond to inputs in the frequency domain.

  Let’s take the case of a simple closed-loop system which is what we will focus on for the rest of the course:



  A simple closed-loop system can be represented using a transfer function like this: $T(s) = \frac{G(s)}{1 + G(s)K(s)}$

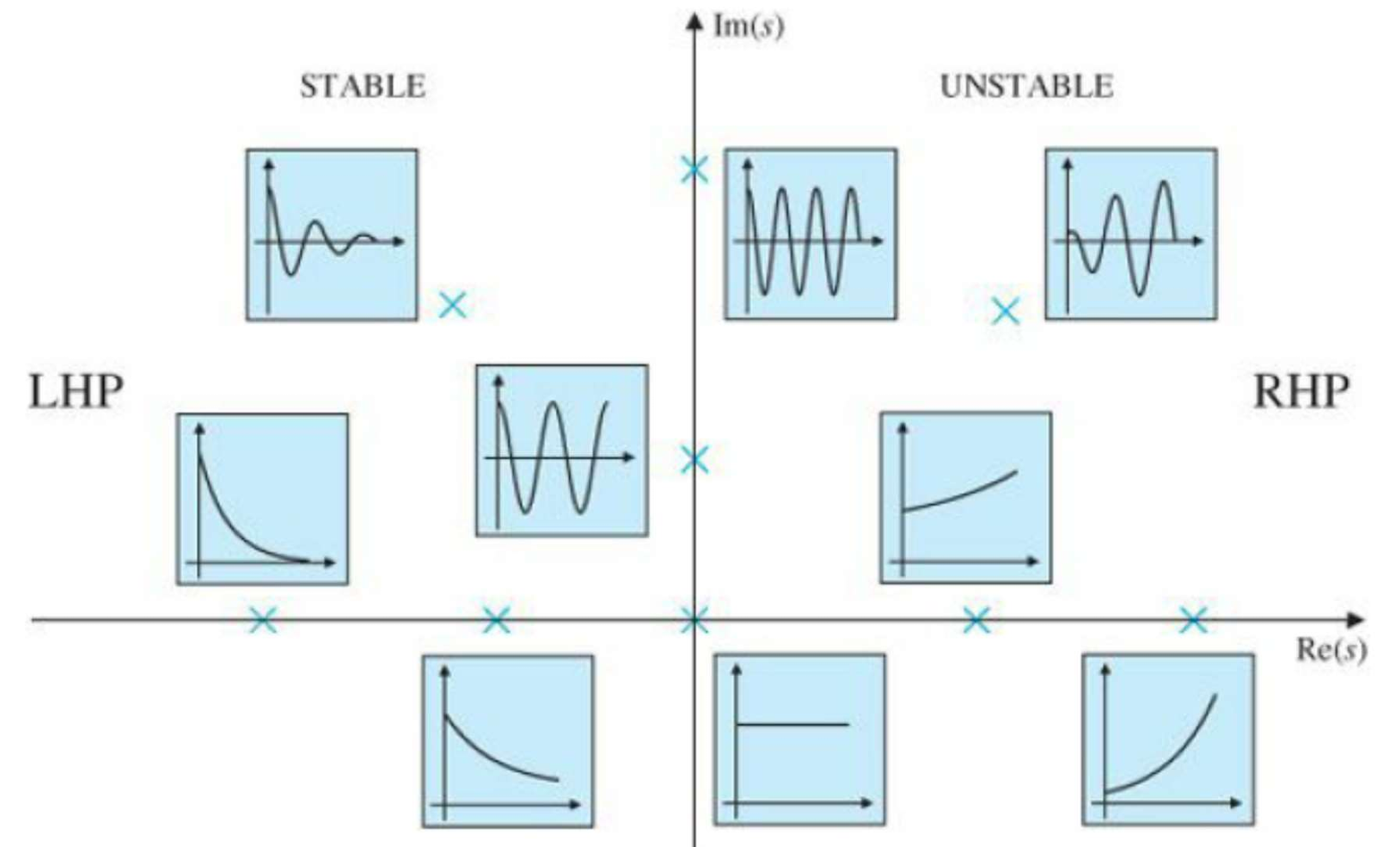

  Stability is determined by the poles of this function which, if no zero and pole are cancelled when forming $G(s)K(s)$, correspond to the zeros of $1 + G(s)K(s)$. What matters is where they lie in the complex plane:

  • Stable system: All poles are in the left-hand side of the complex plane which is usually called Left-Half Plane (LHP).
  • Unstable system: Any pole in the right-half plane (RHP) causes runaway behavior.
  • Marginally stable: Poles on the imaginary axis may cause constant oscillation.



  Mathematical exercise

  Suppose that $G(s) = \dfrac{2s - 1}{s^2 + 2}$

  Is the closed-loop system internally stable with $K(s) = 1$?

  Yes
  No

  Check Answer

  Is the closed-loop system internally stable with $K(s) = \dfrac{4s + 2}{2s - 1}$?

  Yes
  No

  Check Answer

  Solution

  • Exercise 1: $K(s) = 1$
    First, compute the closed-loop transfer function: $$ T(s) = \frac{G(s)}{1 + G(s)K(s)} = \frac{\left(\frac{2s - 1}{s^2 + 2}\right)}{1 + \left(\frac{2s - 1}{s^2 + 2}\right) \times 1} $$ Then, find the characteristic equation by setting the denominator to zero: $$ 1 + \frac{2s - 1}{s^2 + 2} = 0 \implies \frac{(s^2 + 2) + (2s - 1)}{s^2 + 2} = 0 \implies s^2 + 2s + 1 = 0 $$ The characteristic equation factors to $(s + 1)^2 = 0$. The closed-loop poles are at $s = -1$, which are in the LHP. Therefore, it is stable.

        Answer: Yes


  • Exercise 2: $K(s) = \frac{4s + 2}{2s - 1}$ First, compute the closed-loop transfer function: $$ T(s) = \frac{G(s)}{1 + G(s)K(s)} = \frac{\frac{2s - 1}{s^2 + 2}}{1 + \left(\frac{2s - 1}{s^2 + 2}\right)\left(\frac{4s + 2}{2s - 1}\right)} $$ Then, observe the pole-zero cancellation $(2s-1)$. Therefore, we cannot directly take the zeros of $1 + G(s)K(s)$ because if simplfied there will still be a pole left in the nominator $(2s-1)$. In this case, the poles of the closed loop transfer function $T(s)$ are the union of the zeros of $1 + G(s)K(s)$ and the poles of $G(s)$ being the nominator of $T(s)$.

  $$ 1 + G(s)K(s) = 0 \implies 1 + \frac{4s + 2}{s^2 + 2} = 0 \implies \frac{(s^2 + 2) + (4s + 2)}{s^2 + 2} = 0$$ $$ \implies s^2 + 4s + 4 = 0 \implies s=-2 \in \textbf{LHP}$$       The denominator of $G(s)$ being ${2s-1}$, its pole is $s=\frac{1}{2} \in$ RHP. Therefore, it is not stable

        Answer: No

• Tracking: This refers to the system’s ability to accurately follow a desired input or reference signal over time in the absence of disturbance. In robotics, excellent tracking means a manipulator’s end-effector precisely adheres to a predefined trajectory, which is critical for tasks like welding or painting.
• Regulation: This is the system’s capacity to maintain its output at a desired constant value despite the presence of external disturbances. For a robotic system, this could entail holding a specific joint position even when subjected to varying loads or unexpected forces.
• Steady-state error: In many control systems, there can be a persistent, non-zero difference between the desired output and the actual output once all transient behaviors have subsided. This difference is known as the steady-state error and ideally it should be driven to zero.
  How to calculate steady-state error?

  To better understand how a control system performs in steady state, an important theorem should be introduced first.

  Final Value Theorem (FVT)

  For a stable LTI system that produces x(t),

  \[\lim_{t\to\infty} x(t) \;=\; \lim_{s\to 0} s\,X(s).\]

  The system must be stable; otherwise the FVT gives the wrong answer.

  Proof sketch of the Final value theorem

  1) Start from the Laplace transform of the derivative and integrate by parts:

  $$ \mathcal{L}{ \frac{dx}{dt}}= \int_{0}^{\infty} \frac{dx}{dt} e^{-st} \, dt = [x(t)e^{-st}]^{\infty} - \int_{0}^{\infty}x(t)(-s)e^{-st} \, dt = -x(0) + s \int_{0}^{\infty} x(t) e^{-st} \, dt = -x(0) + sX(s) $$

  2) Let $s \to 0^+$ and use the identity:

  $$ \int_{0}^{\infty} \frac{dx}{dt} \, dt = \lim_{t \to \infty} x(t) - x(0) $$

  Then:

  $$ \lim_{s \to 0} \int_{0}^{\infty} \frac{dx}{dt} \, e^{-st} \, dt = -x(0) + \lim_{s \to 0} sX(s) = \lim_{t \to \infty} x(t) - x(0) $$

  Rearranging gives:

  $$ \lim_{t \to \infty} x(t) = \lim_{s \to 0} sX(s) $$

  which is the final value theorem.

  ---

  The steady-state error is the difference between the reference input and the actual output once the system has settled. In other words, it’s the error that remains as time goes to infinity. To compute this, it’s much more convenient to work in the Laplace domain using transfer functions rather than dealing with time-domain differential equations. This is where the Final value theorem becomes very useful. It allows us to compute the value of a signal at infinity using its Laplace transform. So to calculate the steady-state error, we simply use: $$ e_{ss} = \lim_{t \to \infty} e(t) = \lim_{s \to 0} sE(s) $$

• Disturbance rejection: This is the ability of the control system to minimize the adverse impact of unwanted external inputs (disturbances) on the system’s output. For example, a robotic system should maintain its path despite unexpected air currents or minor collisions.
• Sensitivity: This measures how much the system’s performance changes in response to variations in its own internal parameters (e.g., changes in motor efficiency due to temperature fluctuations, or wear and tear). Feedback generally reduces sensitivity to such internal variations, making the system more robust.
• Fast transient response: This refers to the system’s ability to react quickly and effectively to changes in the input or disturbances. A fast transient response means the system can reach its desired operating point in a short amount of time without excessive overshoot or oscillations. In practical terms, this is related to having a sufficiently large control bandwidth. For example, in robotics, a manipulator arm should rapidly adjust its position after receiving a new command so that it operates smoothly and efficiently in real-time tasks.
• Robustness: It is the system’s ability to maintain acceptable performance even when there are uncertainties in parameters or unmodeled dynamics. Real-world systems often face variations due to aging components, environmental changes, or simplifications in the mathematical model. A robust control system continues to function reliably despite these uncertainties.

Proportional, Integral and Derivative actions

But what exactly lies inside the controller, the black box of a feedback system?

There are many types of controllers, each differing in complexity, application, and cost… But the PID controller is one of the most common control algorithm. Most feedback loops are controlled by this algorithm or minor variations of it. Some of its strengths are its simplicity and its ability to achieve a good performance in a wide variety of situations without the need to know in detail the plant to be controlled.

_{Lum, C. (2023) Control Theory: Proportional Integral Derivative (PID) Control. YouTube video, May. Available at: YouTube}

This 9-minute introduction provides an intuitive overview of feedback and PID control. Lum introduces the motivation behind PID, explains where it fits within control systems, and outlines its components.

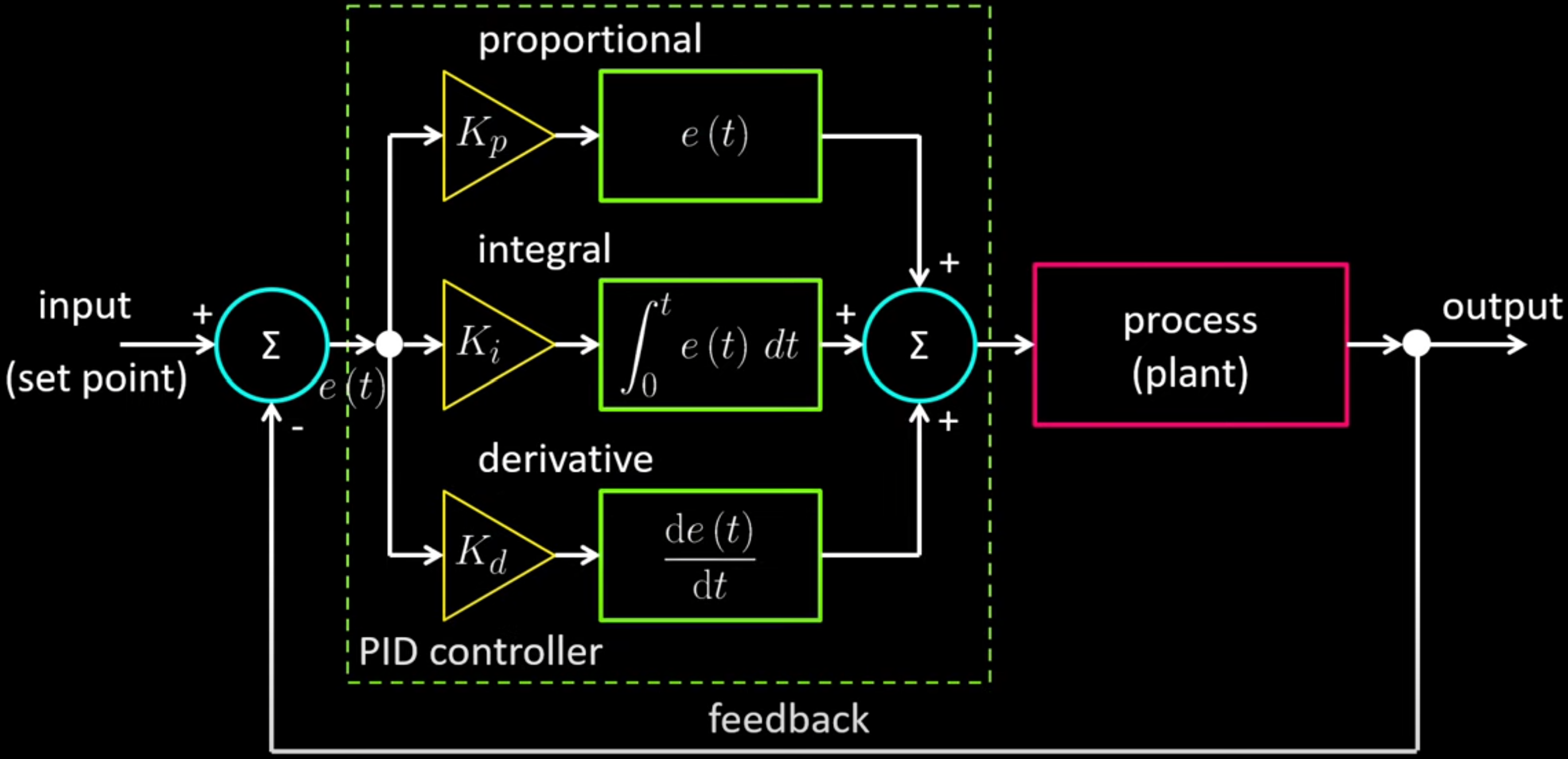

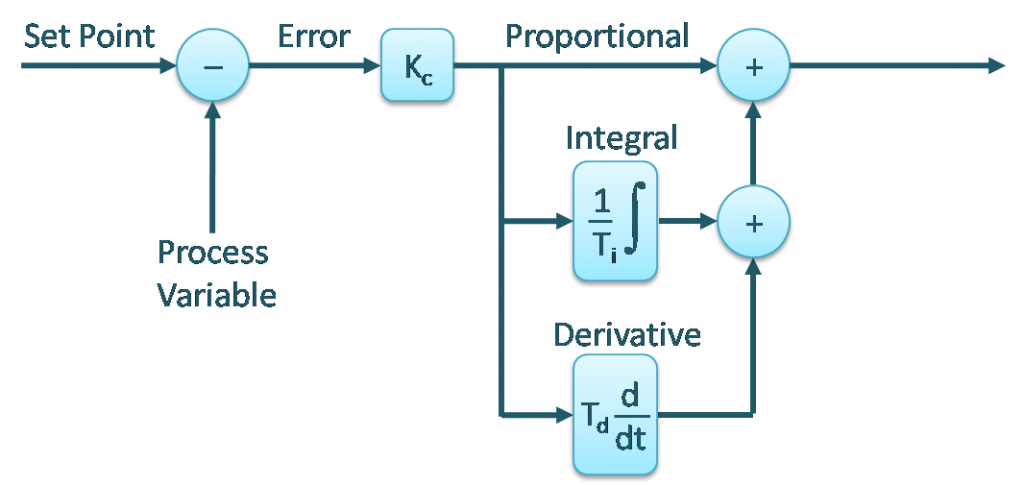

The standard form of the PID control law is:

$$ \mathbf{u}(t) \;=\; \mathbf{K_p} \, \mathbf{e}(t) \;+\; \mathbf{K_i} \int_0^t \mathbf{e}(\tau)\, d\tau \;+\; \mathbf{K_d} \, \frac{d\mathbf{e}(t)}{dt} $$

where:

• Dimensions:
  • $m$ = number of control inputs (actuators), $n$ = number of measured outputs.
  • $\mathbf{u}(t) \in \mathbb{R}^{m}$ is the control signal sent to the plant/actuator.
    Units depend on the actuator input (e.g. voltage $\mathrm{V}$, force $\mathrm{N}$, or torque $\mathrm{Nm}$)
  • $\mathbf{e}(t) \in \mathbb{R}^{n}$ is the tracking error between the desired setpoint/reference output $y_{sp}(t)$ (what we want to achieve) and the measured system output $y(t)$. It is defined as $ e(t) = y_{sp}(t) - y(t)$. Units: same as $y$, e.g. position in $\mathrm{m}$, temperature in $\mathrm{^\circ C}$, etc.
  • $\displaystyle \int_{0}^{t} \mathbf{e}(\tau)\, d\tau \in \mathbb{R}^n$ is the element-wise time integral, and $\dfrac{d\mathbf{e}(t)}{dt}\in \mathbb{R}^n$ the element-wise time derivative.
• Gains:
  • $\mathbf{K_p} \in \mathbb{R}^{m\times n}$ is the proportional gain.
    Units: $\dfrac{u}{y}$ (e.g. $\mathrm{V/m}$ if input is voltage and output is position).
  • $\mathbf{K_i} \in \mathbb{R}^{m\times n}$ is the integral gain.
  • $\mathbf{K_d} \in \mathbb{R}^{m\times n}$ is the derivative gain.

NB: For a single-input single-output system, set $m=n=1$:

• $\mathbf{u}(t)\to u(t)\in \mathbb{R}$, $\mathbf{e}(t)\to e(t)\in \mathbb{R}$
• $\mathbf{K}_p,\mathbf{K}_i,\mathbf{K}_d$ reduce to scalars

This equation might look intimidating at first, but its concept is quite straightforward. The total control signal $ u(t) $ is the sum of three components:

• A P-term : proportional to the current error
• An I-term: proportional to the cumulative (integrated) error over time,

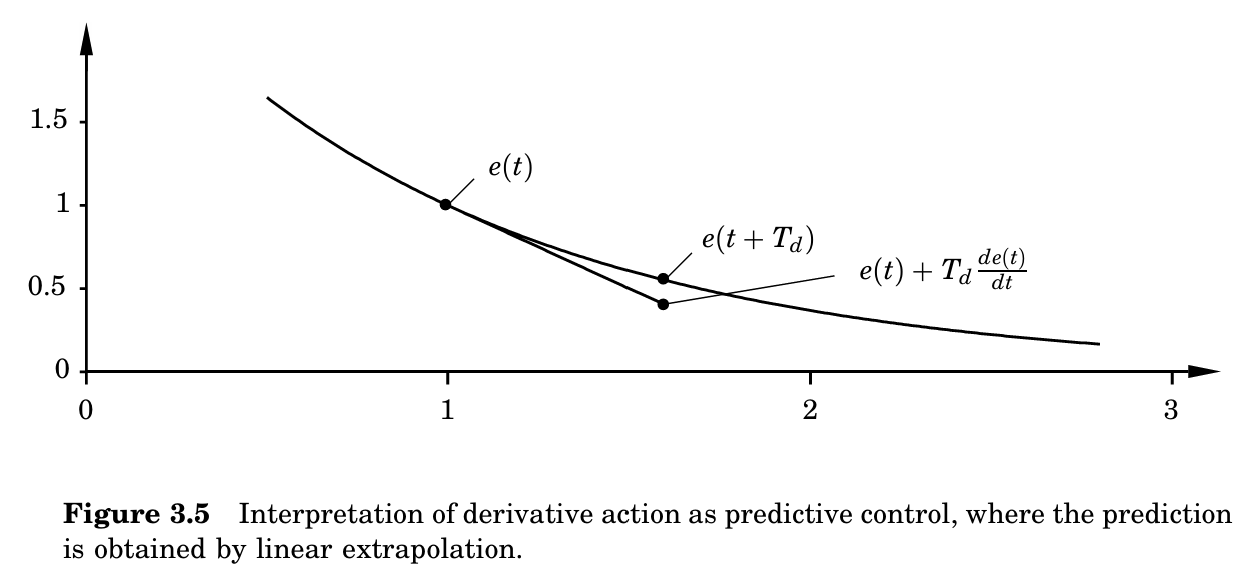

• A D-term: proportional to the predicted future error (via its rate of change).

Each component of the PID acts independently, in the sense that each one computes its own output contribution toward achieving the desired response. The three components are, then, added together to give the controller’s output. Each one fulfills a certain function and improves a certain part of the response. And when the three components work together in the right proportion, they achieve great performance.

Proportional (P) control

_{Lum, C. (2023) Control Theory: Proportional Integral Derivative (PID) Control. YouTube video, May. Available at: https://www.youtube.com/watch?v=_VzHpLjKeZ8&t=544s}

This segment (from 9:04 to 15:03) explains the Proportional (P) term in PID. It shows how this term affects the controller’s response in proportion to the current error, with visual examples of overshoot and steady-state error.

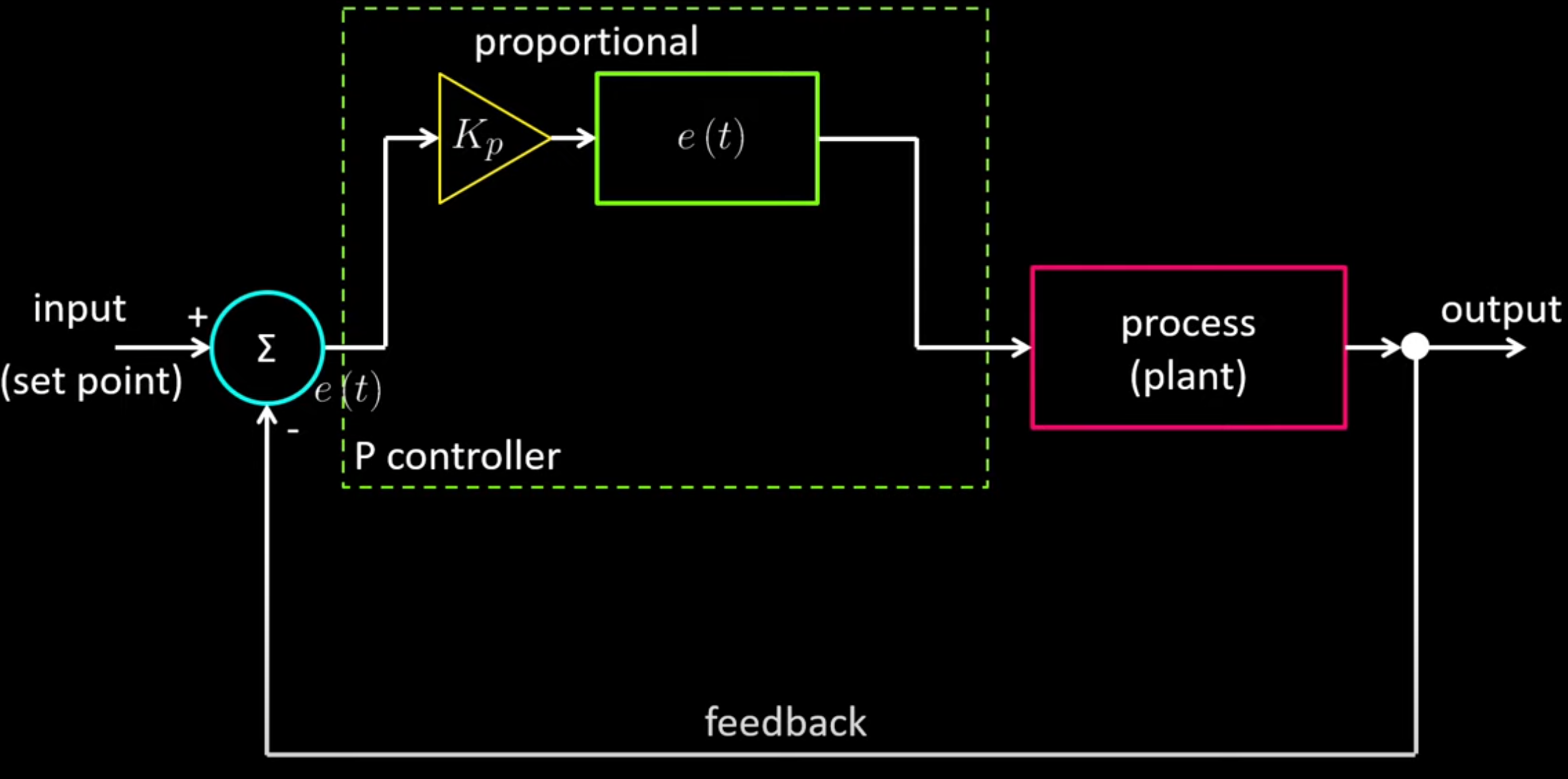

In pure proportional control, the control action is directly proportional to the current error signal.

The control law is expressed as: $$ \mathbf{u}(t) \;=\; \mathbf{K_p} \, \mathbf{e}(t) \;+\; \mathbf{u_b} $$

where:

• Dimensions:
  • $m$ = number of control inputs (actuators), $n$ = number of measured outputs.
  • $\mathbf{u}(t) \in \mathbb{R}^{m}$ is the control signal sent to the plant/actuator.
    Units depend on the actuator input (e.g. voltage $\mathrm{V}$, force $\mathrm{N}$, or torque $\mathrm{Nm}$)
  • $\mathbf{e}(t) \in \mathbb{R}^{n}$ is the tracking error between the desired setpoint/reference output $y_{sp}(t)$ (what we want to achieve) and the measured system output $y(t)$. It is defined as $ e(t) = y_{sp}(t) - y(t)$. Units: same as $y$, e.g. position in $\mathrm{m}$, temperature in $\mathrm{^\circ C}$, etc.
• Gains and bias:
  • $\mathbf{K_p} \in \mathbb{R}^{m\times n}$ is the proportional gain.
    Units: $\dfrac{u}{y}$ (e.g. $\mathrm{V/m}$ if input is voltage and output is position).
  • $\mathbf{u_b} \in \mathbb{R}^{m}$ is the bias (reset) vector. When the error is zero, the control variable takes this value. It can sometimes be manually adjusted to achieve zero steady-state error at a specific operating point. Units depend on the actuator input (e.g. voltage $\mathrm{V}$, force $\mathrm{N}$, or torque $\mathrm{Nm}$)

Hands-on exercise: Exploring proportional control

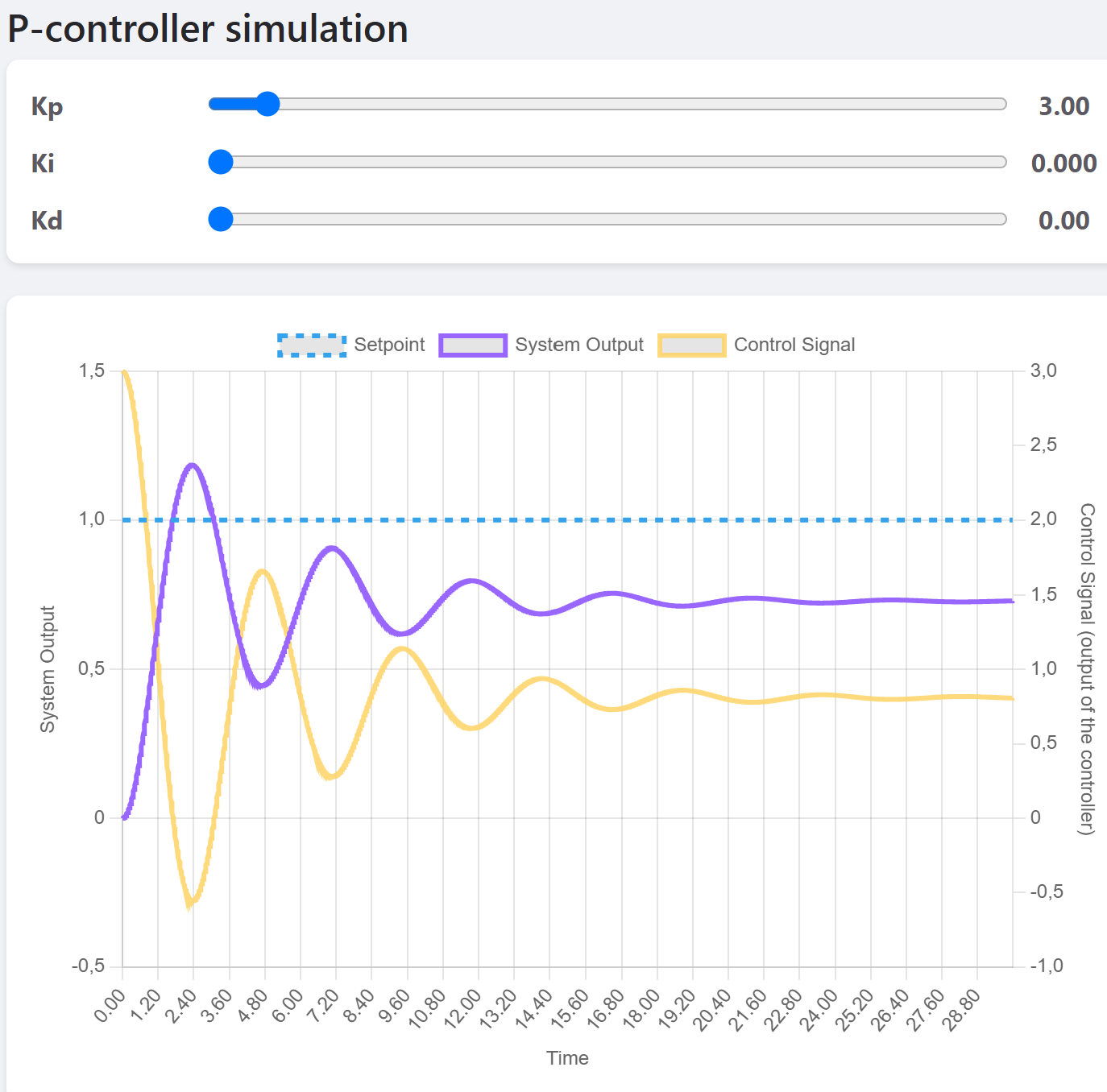

Let’s use an interactive simulation to understand the behavior and limitations of proportional control. It shows a typical second-order system with a pure delay of 1 step driven by a PID controller.

In the plot, three signals are displayed to help visualize the closed-loop dynamics and the role of the controller.

• The blue dashed line represents the desired value (setpoint).
• The purple line represents the plant’s position/output that we are getting from the sensors. The desired behavior is to have it lined up with the desired value.
• The yellow line represents the control signal $u(t)$ that drives the plant (e.g. actuator force). It is plotted on the right y-axis. A big, spiky yellow curve means high actuator demand.

Your task is to vary the value of the proportional gain $(K_p)$. You can, for example, try $K_p = 0.5$, $K_p = 1$ and $K_p = 3$, $K_p=10$ or $K_p=40$ . What do you observe in terms of:

• Response speed and oscillations: What happens to the speed at which the output approaches the setpoint (rise time) as you increase Kp? What happens to the oscillations ?
• Steady-state error: Does the output ever perfectly match the setpoint, or is there always a small, persistent difference (offset)? This persistent difference is called the steady-state error. Can you reduce it to zero by only adjusting $K_p$ ?

What you should observe ?

The system output initially overshoots the setpoint, then enters a damped oscillatory phase before stabilizing at a steady-state value below the setpoint. The control signal exhibits similar transient behavior with high initial amplitude, followed by decaying oscillations, and finally settles at a constant value. Both curves show that the system reaches a stable state with steady-state error and nonzero actuator effort. If you further increase $K_p$, the system destabilizes.

Conclusions from the Exercise

Based on your observations from the simulation, you should have identified the great influence of the proportional gain $K_p$ as well as the following properties and limitations of proportional control:

• Faster response: Increasing the proportional gain $K_p$ generally leads to a faster initial response, reducing the time it takes for the system output to approach the setpoint (i.e., faster rise time). If we have a small $K_p$, the system will take a long time to reach the setpoint, because we are giving “little power” to the actuator. If we increase it, we manage to decrease the response time.

  • Intuitive example: Small $K_p$: Imagine controlling the temperature of a room where your setpoint is 20°C, and the current temperature is 18°C. With a small $K_p$, you turn on the heater a little. The temperature slowly rises to 19°C, then to 19.5°C. It takes a long time to get close to 20°C.

• Increased oscillations and potential instability: While a higher $K_p$ speeds up the response, it also increases overshoot and the tendency for the system to oscillate. If $K_p$ is set too high, the system can become unstable, leading to continuous oscillations or an unbounded, runaway response.

  • Intuitive example: Medium $K_p$: You turn on the heater more strongly. When you see 18°C, you apply significant heat, and the next measurement might be 21°C. You’ve gone too far! You lower the heat, and the temperature drops to 19°C. You raise it again to 20.5°C. You’ve achieved a stable temperature, but you might have overshot the target and then undershot it a few times before settling.

  • Intuitive example: Large $K_p$: When you see 18°C, you turn the heater on full blast. The next measurement might be 32°C! This is a huge overshoot. So, you quickly turn off the heater, and perhaps even turn on the air conditioning. The temperature plummets to 14°C. You react again, blasting the heat, and it shoots up to 45°C. This cycle of extreme overshoots and undershoots means your system is oscillating wildly and has become unstable. This demonstrates that an overly large $K_p$ leads to instability and excessive oscillations.

• Persistent steady-state error: A significant limitation of proportional control is its persistent steady-state error. The output will settle at a value close to the setpoint, but almost never exactly on it. While increasing the proportional gain $K_p$ can reduce this error, it can’t eliminate it completely without causing excessive oscillations or even instability. This happens because the proportional controller needs a non-zero error to produce a non-zero control output.

  • Intuitive example: In a heating system, the controller needs a persistent difference between the desired and actual temperature to keep the heater on and provide the energy needed to maintain the temperature against heat loss to the environment. Without this error, the controller would turn off, and the temperature would drop. This is the fundamental trade-off of proportional control. There will always be a small persistent error required to generate the necessary control output.

• Higher control effort required: A higher $K_p$ also means a stronger control action is applied for the same amount of error. This can demand more from the actuators, potentially leading to wear or limitations if the actuator cannot respond fast or strongly enough. This effect is visible in the simulation through a larger controller output when $K_p$ increases.

This exercise demonstrates that while proportional control provides an immediate corrective action, it inherently struggles with eliminating steady-state errors and can lead to instability if tuned too aggressively. This highlights the need for additional control actions, such as integral and derivative terms, to achieve more robust and precise system performance.

Mathematical exercise

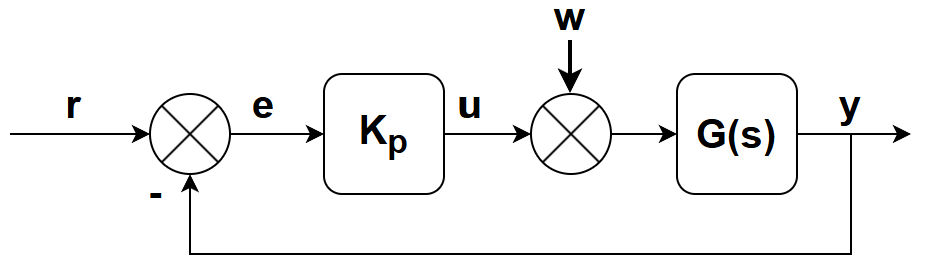

Consider the closed-loop system shown below with a plant $G(s)$ and a proportional controller, i.e. $u(t) = K_p e(t)$ which translated s to $ U(s) = K_p E(s)$ in the frequency domain.

(a) Derive the transfer function between the error signal $E(s)$ and the reference signal $R(s)$ considering no disturbance $w(t)=0$.

$\; \dfrac{E(s)}{R(s)} = \dfrac{K_p G(s)}{1 + K_p G(s)}$
$\; \dfrac{E(s)}{R(s)} = \dfrac{K_p}{1 + K_p G(s)}$
$\; \dfrac{E(s)}{R(s)} = \dfrac{1}{K_p G(s)}$
$\; \dfrac{E(s)}{R(s)} = \dfrac{1}{1 + K_p G(s)}$

Check Answer

(b) Assume the reference input is a unit step: $$ r(t) = 1, \quad R(s) = \frac{1}{s}. $$ Compute the steady-state error using the final value theorem.

$0$

$\dfrac{k_P G(0)}{1 + K_p G(0)}$

$\dfrac{1}{1 + K_p G(0)}$

$\dfrac{K_p}{K_p G(0)}$

Check Answer

Solution

(a) Derive the transfer function $E(s)/R(s)$:

From the closed-loop structure:

$$ E(s) = R(s) - Y(s), \qquad Y(s) = G(s)\,U(s) = G(s)\,k_P\,E(s). $$

So:

$$ E(s) = R(s) - k_P G(s) E(s). $$

Rearrange:

$$ E(s)\big(1 + k_P G(s)\big) = R(s). $$

Thus:

$$ \frac{E(s)}{R(s)} = \frac{1}{1 + k_P G(s)}. $$

(b) Apply the final value theorem to compute the steady-state error for a unit step input:

The final value theorem gives:

$$ e_{\text{ss}} = \lim_{t \to \infty} e(t) = \lim_{s \to 0} s E(s). $$

Since

$$ E(s) = \frac{1}{1 + k_P G(s)} \cdot \frac{1}{s}, $$

we have

$$ e_{\text{ss}} = \lim_{s \to 0} s \cdot \frac{1}{1 + k_P G(s)} \cdot \frac{1}{s} = \frac{1}{1 + k_P G(0)} $$

---

Integral (I) action

_{Lum, C. (2023) Control Theory: Proportional Integral Derivative (PID) Control. YouTube video, May. Available at: https://www.youtube.com/watch?v=_VzHpLjKeZ8&t=903s}

From 15:03 to 24:49, Lum explores the Integral (I) term and how it eliminates steady-state error by accumulating past error. This section also discusses the risk of integral windup and how to manage it.

The primary function of integral action is to eliminate steady-state error. While proportional control often leaves a residual offset, integral action ensures that the process output eventually converges precisely to the setpoint in steady state.

The integral term is proportional to the accumulation (integral) of the error over time. When combined with proportional action, it forms a Proportional-Integral (PI) controller as shown below:

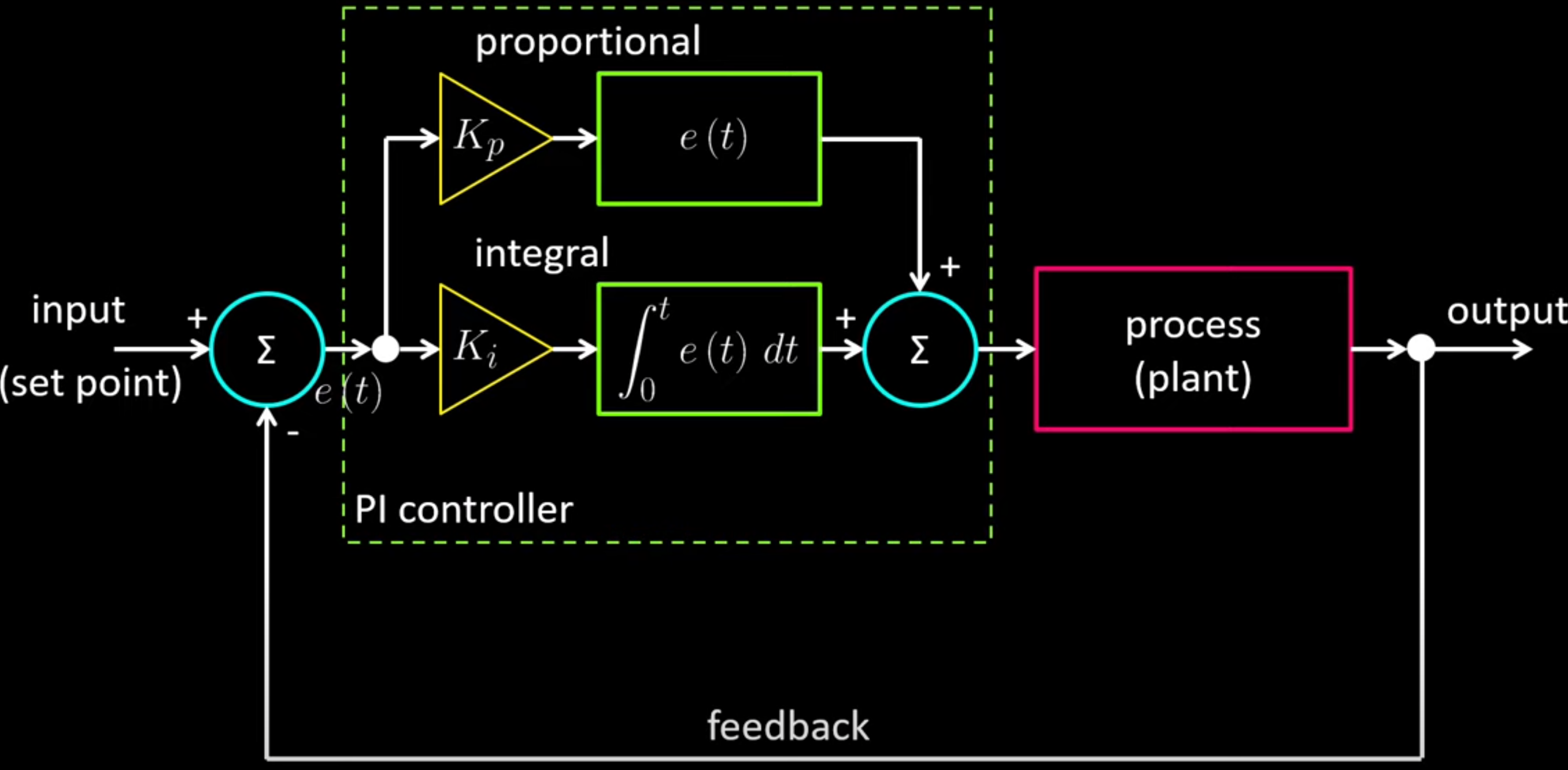

The control law is expressed as:

$$ \mathbf{u}(t) = \mathbf{K_p} e(t) + \mathbf{K_i} \int_{0}^{t} \mathbf{e}(\tau)d\tau + \mathbf{u_b} $$

where:

• Dimensions
  • $m$ = number of control inputs (actuators), $n$ = number of measured outputs.
  • $\mathbf{u}(t) \in \mathbb{R}^{m}$ is the control signal sent to the plant/actuator.
    Units depend on the actuator input (e.g. voltage $\mathrm{V}$, force $\mathrm{N}$, or torque $\mathrm{Nm}$)
  • $\mathbf{e}(t) \in \mathbb{R}^{n}$ is the tracking error between the desired setpoint/reference output $y_{sp}(t)$ (what we want to achieve) and the measured system output $y(t)$. It is defined as $ e(t) = y_{sp}(t) - y(t)$. Units: same as $y$, e.g. position in $\mathrm{m}$, temperature in $\mathrm{^\circ C}$, etc.
  • $\displaystyle \int_{0}^{t} \mathbf{e}(\tau)\, d\tau \in \mathbb{R}^{n}$ is the element-wise time integral.
• Gains and bias
  • $\mathbf{K_p} \in \mathbb{R}^{m \times n}$ is the proportional gain matrix.
    Units: $\dfrac{u}{y}$ (e.g. $\mathrm{V/m}$ if input is voltage and output is position).
  • $\mathbf{K_i} \in \mathbb{R}^{m \times n}$ is the integral gain matrix.
  • $\mathbf{u_b} \in \mathbb{R}^{m}$ is the bias (reset) vector. When the error is zero, the control variable takes this value. It can sometimes be manually adjusted to achieve zero steady-state error at a specific operating point. Units depend on the actuator input (e.g. voltage $\mathrm{V}$, force $\mathrm{N}$, or torque $\mathrm{Nm}$)

Hands-on exercise: Exploring integral control

Let’s use again the interactive simulation to understand the behavior and limitations of integral control.

It shows a typical second-order system with a pure delay of 1 step driven by a PID controller. In the plot, three signals are displayed to help visualize the closed-loop dynamics and the role of the controller.

• The blue dashed line represents the desired value (setpoint).
• The purple line represents the plant’s position/output that we are getting from the sensors. The desired behavior is to have it lined up with the desired value.
• The yellow line represents the control signal $u(t)$ that drives the plant (e.g. actuator force). It is plotted on the right y-axis. A big, spiky yellow curve means high actuator demand.

Your task is to gradually increase the value of the integral gain $K_i$ while keeping the proportional gain $K_p$ you found in the previous hands-on-exercise (e.g. 3). You can, for example, try $K_i=0.1$, $K_i=0.5$, $K_i=1$ or $K_i=2$. What do you observe in terms of:

• Steady-state error: What happens to the steady-state error as you increase Ki? Does the output eventually reach the setpoint precisely?
• Impact on oscillations: How does a very large Ki affect the system’s oscillations and overall stability? Can too much integral action lead to new problems?

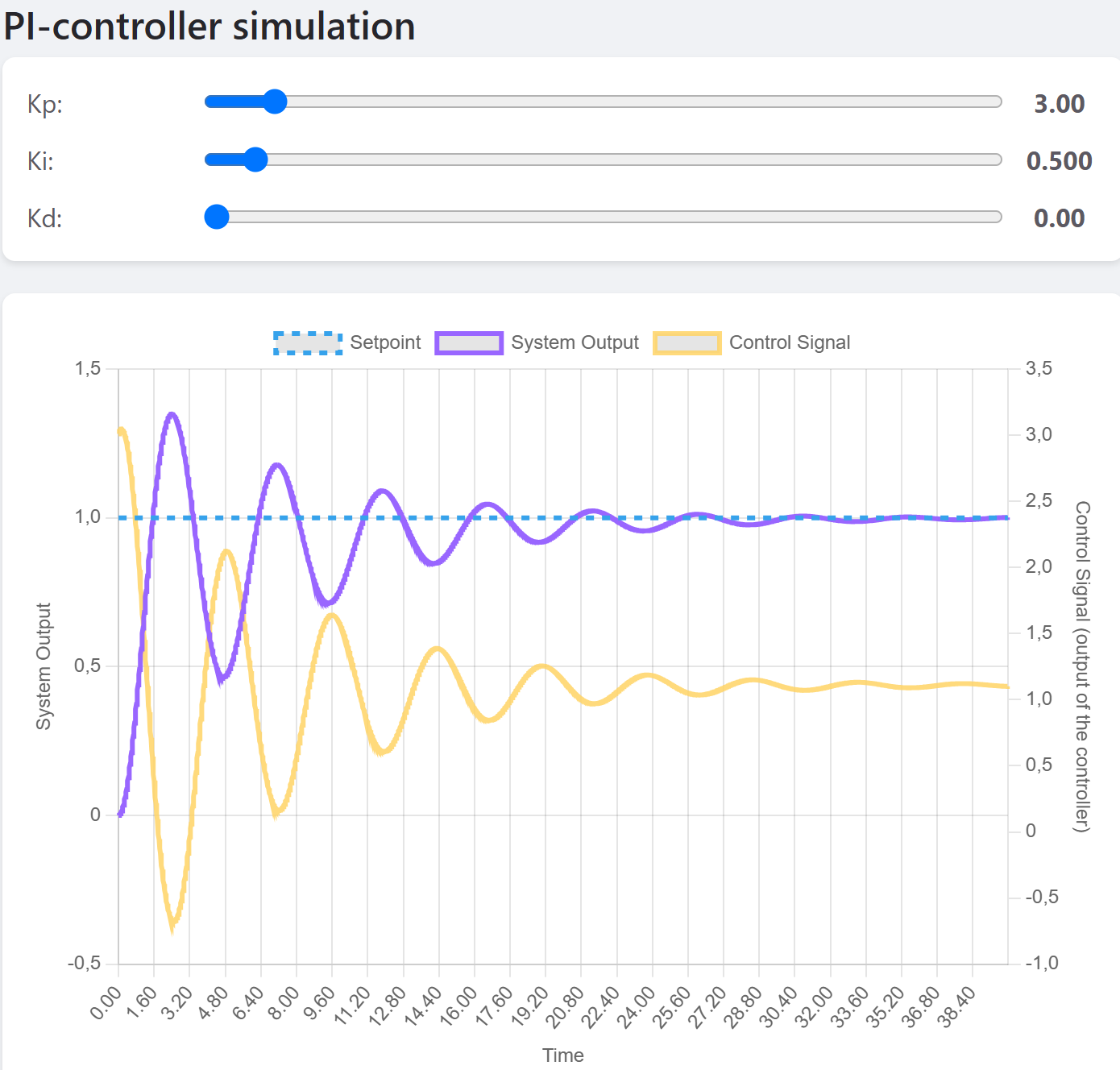

What you should obtain ?

The system output quickly rises, overshoots the setpoint, and goes through a damped oscillatory phase before settling exactly at the reference with no steady-state error. Compared to the P controller, the addition of the integral term eliminates the offset. The control signal starts with high amplitude, oscillates similarly to the output, and eventually stabilizes at a higher constant value than in the P case, reflecting the accumulated integral action needed to maintain zero error.

Conclusions from the Exercise

Based on your observations from the simulation, and consistent with the principles of integral action, you should have identified the following:

• Elimination of steady-state error: The primary and most significant role of integral action is to eliminate steady-state error. If a steady-state error $e_0$ exists (i.e., $e_0 \neq 0$), the integral term $\int e(\tau)d\tau$ will continuously accumulate this error. This accumulation will cause the control signal u(t) to continuously increase (if $e_0 > 0$) or decrease (if $e_0 < 0$). This adjustment continues until the error itself becomes zero. As long as there is any persistent error, the integral term will keep pushing the control signal, thereby ensuring that the system eventually settles precisely at the setpoint with no offset. Conceptually, integral action can be viewed as an automatic mechanism that reacts to the memory of past errors by continuously adjusting the bias term $u_b$ of a proportional controller until the error is nulled.
  Please note, however, that this is only valid in the case of a constant desired value. A more complex desired form would require adding more integrators.

• Increased oscillations and overshoot: While integral action is essential for eliminating steady-state error, an overly aggressive integral action (a very large $K_i$) can introduce undesirable oscillations, increase overshoot, and potentially make the system respond sluggishly or even become unstable due to the accumulated past errors. Therefore, a careful balance is required when tuning $K_i$.

This exercise highlights that integral control effectively solves the steady-state error problem of proportional-only control but must be tuned carefully to avoid introducing excessive oscillations.

Derivative (D) action

_{Lum, C. (2023) Control Theory: Proportional Integral Derivative (PID) Control. YouTube video, May. Available at: https://www.youtube.com/watch?v=_VzHpLjKeZ8&t=1489s}

This short clip (24:49–30:41) introduces the Derivative (D) term. It provides damping by anticipating future error, helping reduce overshoot and oscillation. Lum explains when and how it’s useful — and where it can go wrong.

The purpose of derivative action is primarily to improve the closed-loop stability and to enhance the speed of response by anticipating future errors. It achieves this by acting based on the rate of change of the error signal.

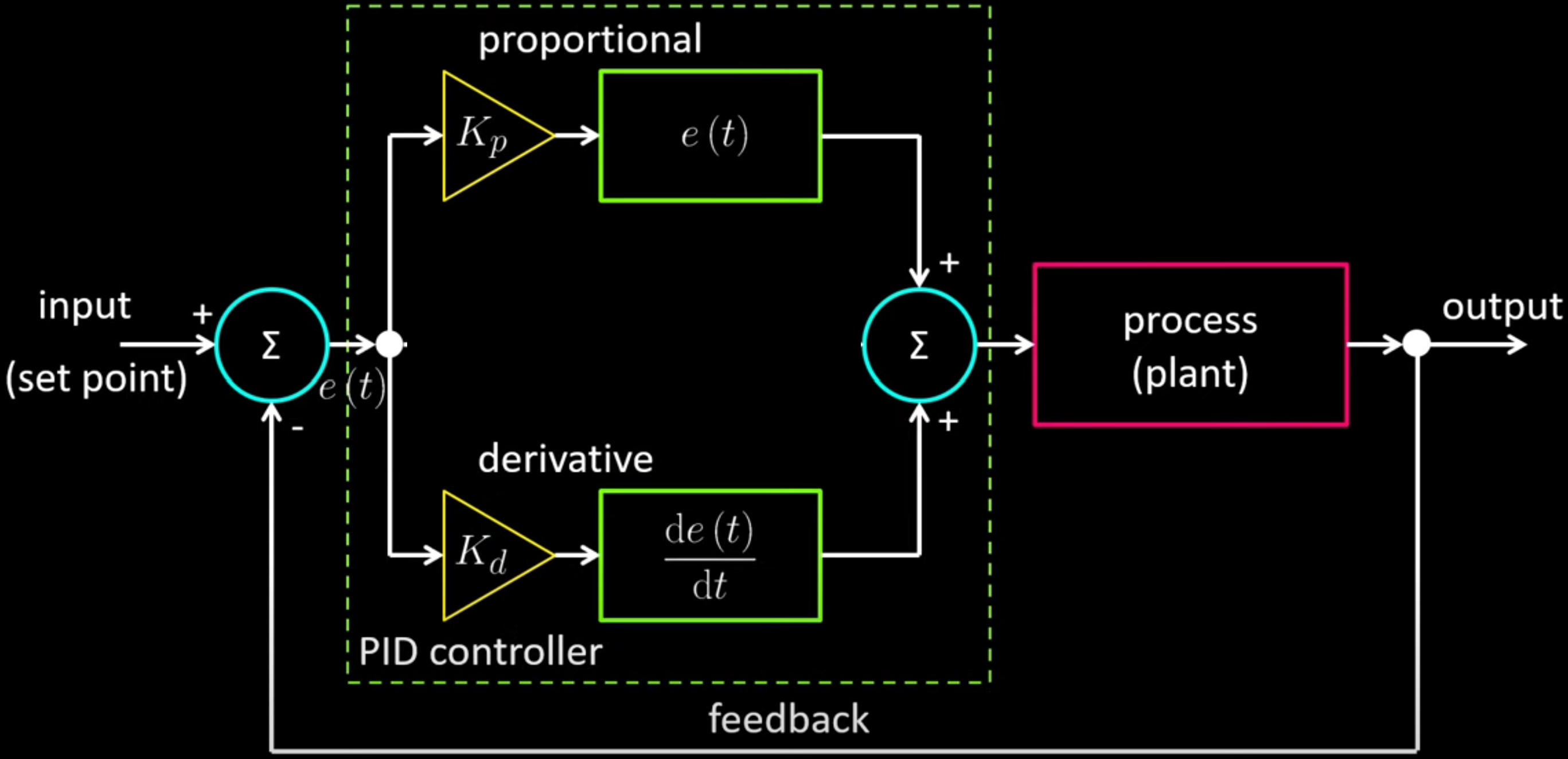

When combined with proportional action, it forms a Proportional-Derivative (PD) controller as shown below:

The control law is expressed as:

$$ \mathbf{u}(t) \;=\; \mathbf{K_p} \, \mathbf{e}(t) \;+\; \mathbf{K_d} \frac{de(t)}{dt} + \mathbf{u_b} $$

where:

• Dimensions:
  • $m$ = number of control inputs (actuators), $n$ = number of measured outputs.
  • $\mathbf{u}(t) \in \mathbb{R}^{m}$ is the control signal sent to the plant/actuator.
    Units depend on the actuator input (e.g. voltage $\mathrm{V}$, force $\mathrm{N}$, or torque $\mathrm{Nm}$)
  • $\mathbf{e}(t) \in \mathbb{R}^{n}$ is the tracking error between the desired setpoint/reference output $y_{sp}(t)$ (what we want to achieve) and the measured system output $y(t)$. It is defined as $ e(t) = y_{sp}(t) - y(t)$. Units: same as $y$, e.g. position in $\mathrm{m}$, temperature in $\mathrm{^\circ C}$, etc.
  • $\dfrac{d\mathbf{e}(t)}{dt}\in \mathbb{R}^n$ the element-wise time derivative.
• Gains and bias:
  • $\mathbf{K_p} \in \mathbb{R}^{m\times n}$ is the proportional gain.
    Units: $\dfrac{u}{y}$ (e.g. $\mathrm{V/m}$ if input is voltage and output is position).
  • $\mathbf{K_d} \in \mathbb{R}^{m\times n}$ is the derivative gain.
  • $\mathbf{u_b} \in \mathbb{R}^{m}$ is the bias (reset) vector. When the error is zero, the control variable takes this value. It can sometimes be manually adjusted to achieve zero steady-state error at a specific operating point. Units depend on the actuator input (e.g. voltage $\mathrm{V}$, force $\mathrm{N}$, or torque $\mathrm{Nm}$)

Hands-on Exercise: Exploring derivative control

Let’s use again the interactive simulation to understand the behavior and limitations of derivative control. It shows a typical second-order system with a pure delay of 1 step driven by a PID controller. In the plot, three signals are displayed to help visualize the closed-loop dynamics and the role of the controller.

• The blue dashed line represents the desired value (setpoint).
• The purple line represents the plant’s position/output that we are getting from the sensors. The desired behavior is to have it lined up with the desired value.
• The yellow line represents the control signal $u(t)$ that drives the plant (e.g. actuator force). It is plotted on the right y-axis. A big, spiky yellow curve means high actuator demand.

Your task is to gradually increase the value of the derivative gain $K_d$ while keeping the proportional gain $K_p$ you found in the first hands-on-exercise (e.g. 3). You can, for example, try $K_d=0.5$, $K_d =4$, $K_d=7$, $K_d=10$ or $K_d=20$ . What do you observe in terms of:

• Oscillations and overshoot: What happens to the oscillations and overshoot as you increase Kd? Does the system become more stable and settle faster?
• Sensitivity to noise and rough Behavior:: Does the output (in green) become rough or erratic? How might this relate to measurement noise in a real system? (Note: Try extreme values of Kd. Furthermore, The simulator does not perfectly show noise, but consider the theoretical implications.)

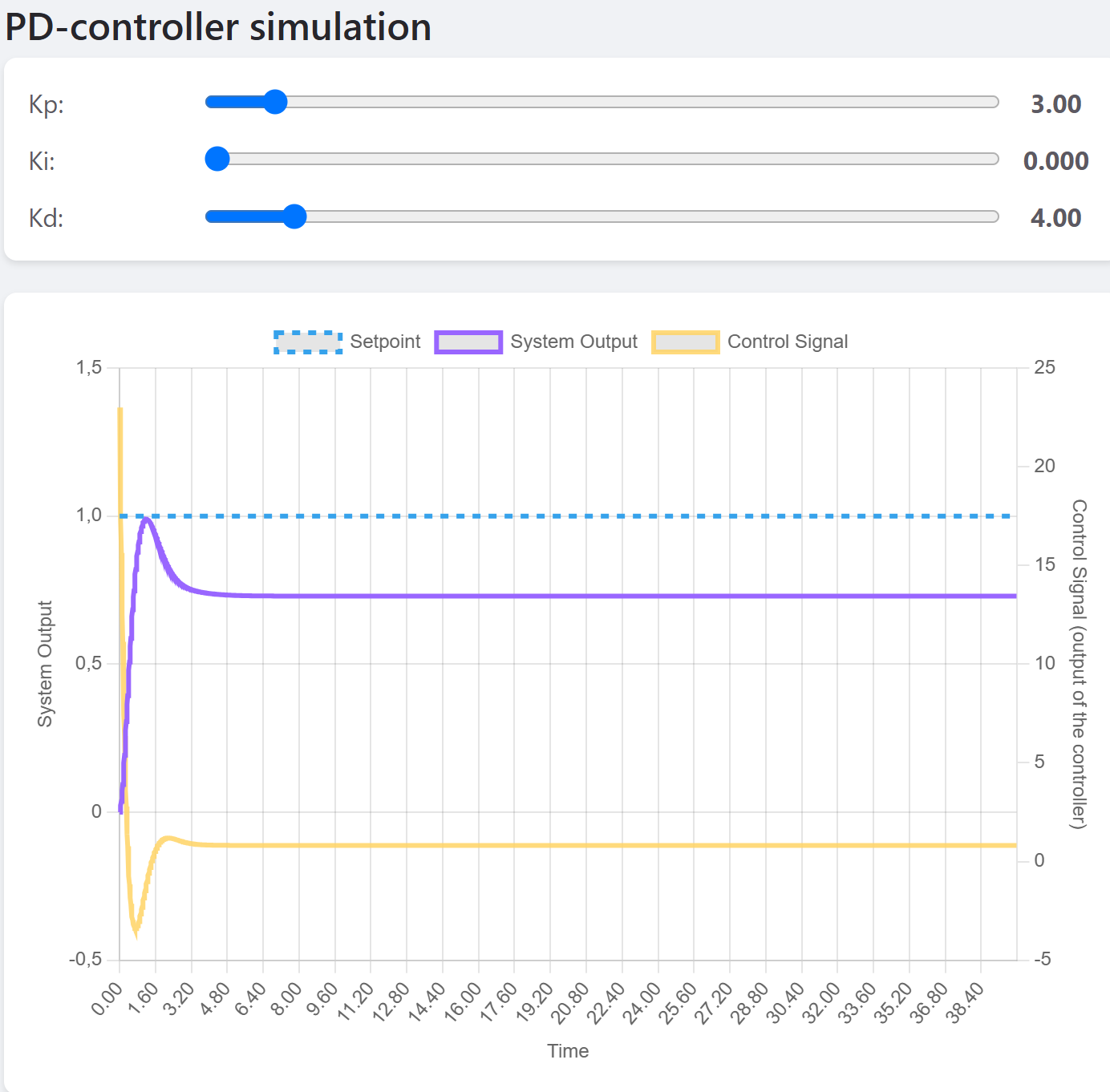

What you should obtain?

The output rises quickly and overshoots slightly, but settles much faster than in the P or PI cases, with reduced oscillations. However, it does not reach the setpoint, there’s still steady-state error. The control signal shows a sharp peak at the beginning, reflecting the derivative action responding to the rapid change in error, then decays smoothly and stabilizes.

Conclusions from the Exercise

Based on your observations from the simulation, and consistent with the principles of derivative action, you should have identified the following:

• Improvement in stability and damping: Derivative action effectively improves the closed-loop stability and enhances the speed of response by anticipating future errors. It achieves this by acting based on the rate of change of the error signal. Derivative action can be intuitively understood as a form of predictive control. By sensing how quickly the error is changing, the controller can predict what the error will be in the near future (e.g., through linear extrapolation of the error curve, as shown below). This anticipation allows the controller to apply a corrective control action even before the full magnitude of the error manifests. This predictive capability helps to effectively damp oscillations, reduce overshoot, and improve the overall transient response, thereby significantly enhancing system stability. As demonstrated in simulations, incorporating derivative action adds significant damping to the system, which helps reduce oscillations and minimize overshoot. The derivative component improves the overall response of many systems for moderate values of $K_d$.



• Rough behavior and actuator demands: If we go overboard with $K_d$, we will see a lack of smoothness in the response, and other weird behaviors. The derivative component is sometimes a little rough because it demands very large actions. Imagine, for example, an instantaneous change in the setpoint. The derivative component would demand an infinite action that the actuator cannot satisfy. Since the actuator cannot provide the action requested by the controller, we would have deviations from what was calculated, or we could even damage the actuator. Consequently, derivative action is almost universally implemented in conjunction with a low-pass filter to smooth out these high-frequency components.

• Sensitivity to noise: A critical downside of the derivative action is that it is highly sensitive to noise present in the error signal or sensor measurements. Differentiating noisy signals amplifies the noise, which can lead to erratic control actions, increased wear on actuators, and potentially instability.

The full PID controller

_{Brian Douglas (n.d.) Introduction to Control Systems. YouTube video. Available at: https://www.youtube.com/watch?v=wkfEZmsQqiA}

This short video by Brian Douglas revisits key control concepts through fresh examples. It’s a great way to reinforce the intuition behind open-loop vs closed-loop systems and sets the stage for understanding PID in context.

To summarize, the PID controller is the most widely used control algorithm in industry, effectively combining the strengths of all three fundamental control actions:

• Proportional (P) term: Provides a control action directly proportional to the current error (the present), influencing the rise time and affecting the steady-state error. It gives the controller an immediate response to deviations from the setpoint.
• Integral (I) term: Accumulates past errors to ensure the complete elimination of steady-state offset, guaranteeing that the output eventually reaches and settles precisely at the setpoint. It addresses the memory of the error (the past).
• Derivative (D) term: Anticipates future errors based on the rate of change of the current error. This term improves system stability, reduces overshoot, and speeds up the overall response by providing damping.

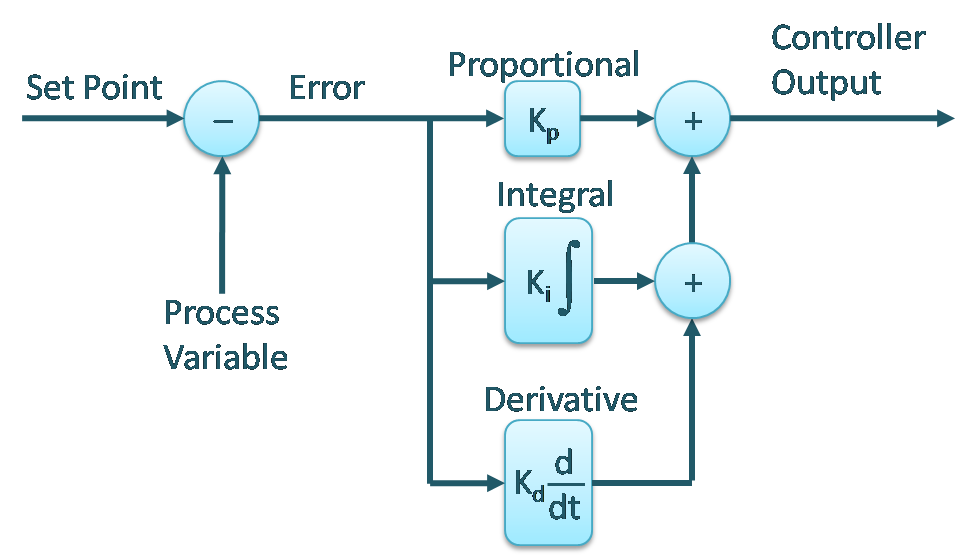

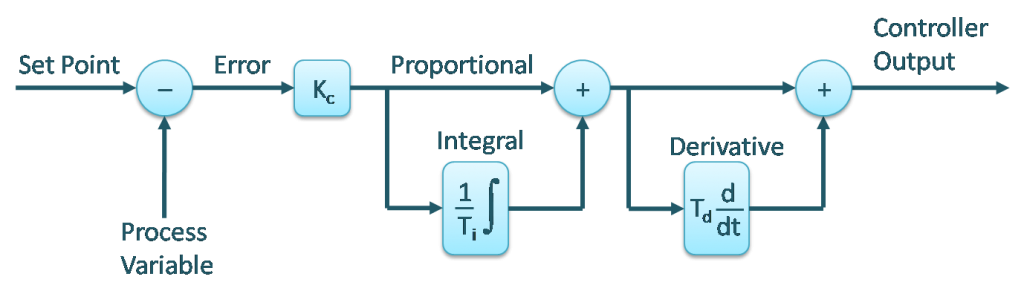

The complete PID control law is, therefore, given by:

$$ \mathbf{u}(t) \;=\; \mathbf{K_p} \, \mathbf{e}(t) \;+\; \mathbf{K_i} \int_0^t \mathbf{e}(\tau)\, d\tau \;+\; \mathbf{K_d} \, \frac{d\mathbf{e}(t)}{dt} $$

where:

• Dimensions:
  • $m$ = number of control inputs (actuators), $n$ = number of measured outputs.
  • $\mathbf{u}(t) \in \mathbb{R}^{m}$ is the control signal sent to the plant/actuator.
    Units depend on the actuator input (e.g. voltage $\mathrm{V}$, force $\mathrm{N}$, or torque $\mathrm{Nm}$)
  • $\mathbf{e}(t) \in \mathbb{R}^{n}$ is the tracking error between the desired setpoint/reference output $y_{sp}(t)$ (what we want to achieve) and the measured system output $y(t)$. It is defined as $ e(t) = y_{sp}(t) - y(t)$. Units: same as $y$, e.g. position in $\mathrm{m}$, temperature in $\mathrm{^\circ C}$, etc.
  • $\displaystyle \int_{0}^{t} \mathbf{e}(\tau)\, d\tau \in \mathbb{R}^n$ is the element-wise time integral, and $\dfrac{d\mathbf{e}(t)}{dt}\in \mathbb{R}^n$ the element-wise time derivative.
• Gains:
  • $\mathbf{K_p} \in \mathbb{R}^{m\times n}$ is the proportional gain.
    Units: $\dfrac{u}{y}$ (e.g. $\mathrm{V/m}$ if input is voltage and output is position).
  • $\mathbf{K_i} \in \mathbb{R}^{m\times n}$ is the integral gain.
  • $\mathbf{K_d} \in \mathbb{R}^{m\times n}$ is the derivative gain.
    • $\mathbf{u_b} \in \mathbb{R}^{m}$ is the bias (reset) vector. When the error is zero, the control variable takes this value. It can sometimes be manually adjusted to achieve zero steady-state error at a specific operating point. Units depend on the actuator input (e.g. voltage $\mathrm{V}$, force $\mathrm{N}$, or torque $\mathrm{Nm}$)

Another very intuitive way to perceive the three components involved in a PID controller is presented in the rest of the video

_{Lum, C. (2023) Control Theory: Proportional Integral Derivative (PID) Control. YouTube video, May. Available at: https://www.youtube.com/watch?v=_VzHpLjKeZ8&start=1841&end=2656}

In this final part, an intuitive analogy of a PID controller is presented:

• The proportional (P) component can be thought of as a spring. It provides a restoring force proportional to the displacement (error).
• The derivative (D) component acts like a damper (or viscous fluid). It resists the rate of change of motion (error), providing a damping effect.
• The integral (I) component is harder to visualize but it is vaguely analogized to a inertia/momentum. It accumulates past error, steadily increasing its pull or push to eliminate any persistent offset, much like accumulated momentum continues to move an object even when the initial force is removed. This persistent action ensures that the system eventually settles precisely at the setpoint, taking over the control authority once the error becomes zero.

Hands-on Exercise: Exploring PID controller

Now that you fully understand the individual effects of each component of the PID controller, let’s go back to the simulation and tune the different gains. Try to identify the values that achieve the best performance in terms of:

• Rise Time: The output should reach the vicinity of the setpoint as quickly as possible.
• Overshoot: The output should exceed as less as possible the setpoint before settling.
• Settling Time: The oscillations should die down as fast as possible.
• Steady-State Error: The final difference between the setpoint and the actual output should be zero.
• Stability: The system’s output should remains bounded or not behave erraticly.

(Note that is is harder than before because, apart from the individual effects, you are also observing the combined effect of the different changes)

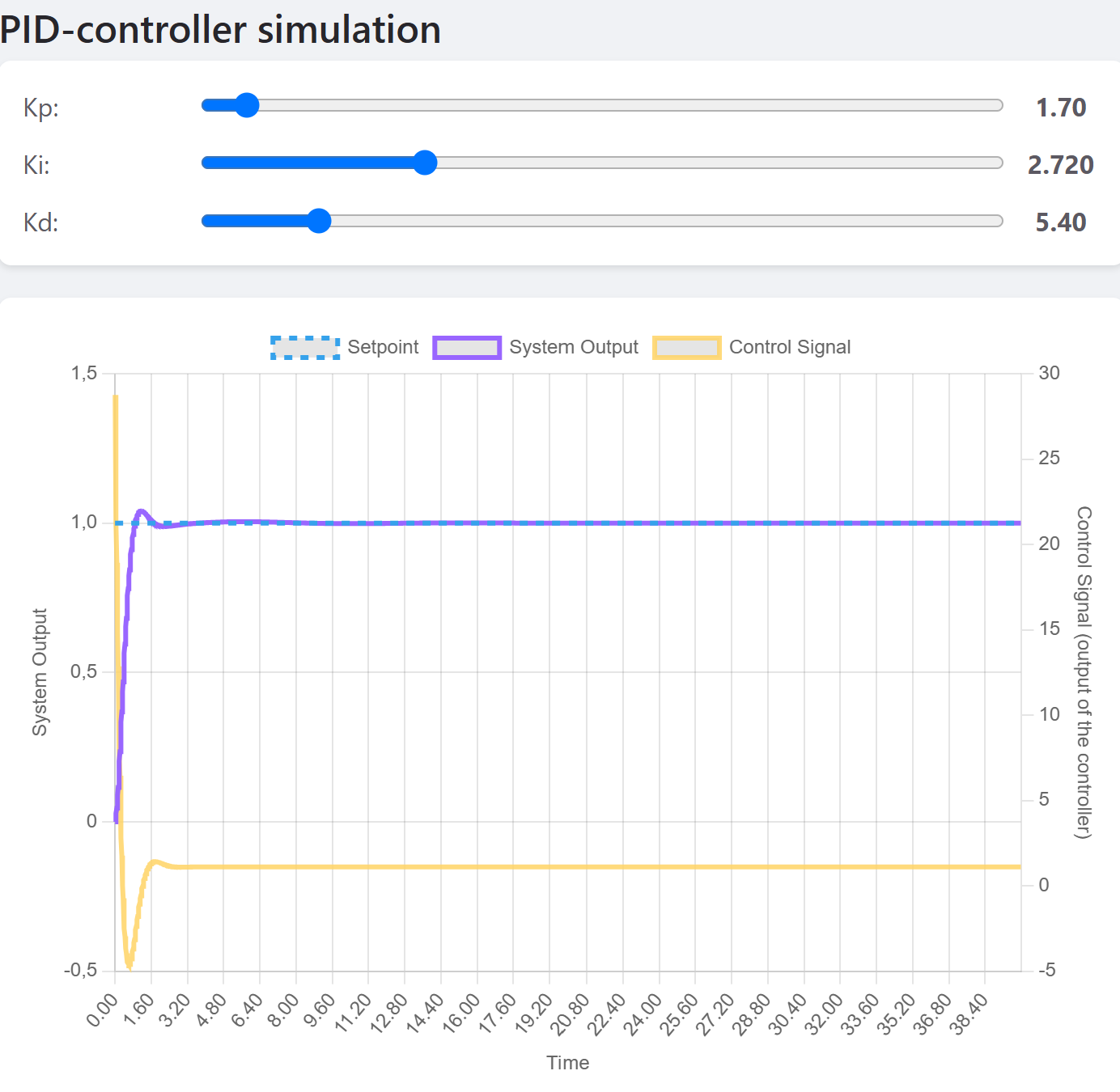

What you should obtain?

The system reaches the setpoint quickly with minimal overshoot and a fast settling time. The oscillations die out smoothly, and the output stabilizes exactly at the desired value without steady-state error. Throughout the response, the system remains stable and well-behaved, showing no signs of erratic or unbounded behavior. The control signal shows a strong initial response that quickly stabilizes, combining contributions from all three terms to achieve fast, accurate, and stable behavior.

Summary exercises

Conceptual exercise

Select the correct qualitative effect of increasing each PID parameter independently, then click Check answers.

Programming exercise: implementing a PID control loop

You are asked to complete a simple PID control loop that runs every dt seconds. The loop computes the error, its derivative, and integral, and then combines them to compute a control output u.

Select the correct expressions from the dropdown menus below to fill in the missing parts.

Check Answer

  eint   = 0
  eprev  = 0

  repeat every dt seconds {
      # Compute the error as setpoint minus the measured output
      e     = desired - read_sensor()

      # Compute the derivative term to capture how fast the error is changing.
      edot  = (e - eprev) / dt

      # Update the integral term by summing the error over time.
      eint  = eint + e * dt

      # Combine proportional, integral and derivative contribution into the final control signal.
      u     = Kp * e + Ki * eint + Kd * edot

      # Save the current error for the next loop iteration.
      eprev = e

      # Send the control signal to the actuator.
      send_control(u)
  }

  # initial state
  eint   = 0
  eprev  = 0
  edot_f = 0   # filtered derivative

  # tunables
  tau = 0.05                   # derivative low-pass time constant (s)
  umin, umax = -1.0, 1.0       # actuator limits
  eint_min, eint_max = -0.5, 0.5  # integral limits

  repeat every dt seconds {
      e     = desired - read_sensor()
      edot  = (e - eprev) / dt

      # 1st-order low-pass filter on the derivative
      alpha  = dt / (tau + dt)          # 0 < alpha < 1
      edot_f = (1 - alpha) * edot_f + alpha * edot

      # integral with anti-windup clamp
      eint = eint + e * dt
      if (eint > eint_max) { eint = eint_max }
      if (eint < eint_min) { eint = eint_min }

      # unsaturated control effort
      u_unsat = Kp * e + Ki * eint + Kd * edot_f

      # output saturation
      u = u_unsat
      if (u > umax) { u = umax }
      if (u < umin) { u = umin }

      eprev = e
      send_control(u)
  }

Despite its popularity, it must said that currently the PID is not the best controller available. But in most cases, it is more than enough. On the other hand, many of the most modern controllers are nothing more than improved versions of a PID, such as the different families based on PID with adaptive parameters. Also, one should mention that, in this course, the focus was put on explaining the PID structure that is traditionally presented in the academic textbooks, the parallel structure.

Practical implementation considerations for PID control

Effectively implementing PID controllers in real-world systems goes beyond theoretical understanding and requires careful consideration of several practical aspects.

PID gain tuning

As you have already experienced in the simulations, obtaining the desired response from a PID controller is not a trivial task. Even if the simulated system is simple, with no measurement noise and only a pure time delay, finding a set of parameters that yield a satisfactory response requires careful effort. It is therefore natural to expect that, in real-world applications, the problem becomes even more complex.

The difficulty lies in the fact that the three parameters of the controller, $K_p$, $K_i$, and $K_d$, do not act independently. Instead, they strongly influence one another and the overall response is always the result of their combined effect. For example, increasing the proportional gain may improve the speed of the response but also amplify oscillations, which then require an adjustment of the derivative gain for damping, while the integral gain might simultaneously introduce long-term stability issues. Thus, it is not sufficient to adjust each of them in isolation. Rather, there exists a certain zone within the three-dimensional parameter space where the behavior of the controller is acceptable, and navigating towards this zone is the main challenge of tuning.

From an implementation point of view, writing a PID controller is easy. A few lines of code are enough to compute the three terms and combine them into the control action. The real difficulty, and the essence of PID control engineering, is to determine appropriate values for the gains. Tuning is, therefore, the step where most of the intellectual and experimental effort is required.

_{Douglas, B. (2018) PID Tuning Guide | Understanding PID Control, Part 4. YouTube video, 3 July. Available at: https://www.youtube.com/watch?v=sFOEsA0Irjs}

This video introduces the main families of PID tuning methods and highlights when each of them is most appropriate.

In practice, there are three main approaches to tuning PID controllers.

• empirical tuning: It relies on the engineer’s knowledge of control theory and on systematic trial-and-error adjustments.
• rule-based tuning: It consists in applying heuristic procedures that have been established and tested by experts, such as the well-known Ziegler–Nichols method.
• model-based tuning: It builds upon an explicit model of the plant and uses analytical or computational tools to calculate the controller parameters.
• software-based auto-tuning: Many modern industrial controllers and advanced simulation environments offer auto-tuning functionalities. These tools can automatically determine suitable PID gains by analyzing the system’s step response or by running automated tests.

Empirical and rule-based approaches are often simple to apply and can provide useful first estimates, but they also have limitations. They may not work well for plants with significant delays, for high-order dynamics, or for systems that are unstable in open loop. In contrast, model-based methods are systematic and powerful, since they rely on the mathematical description of the plant. They allow one to tune the controller to meet specified performance objectives, such as overshoot, settling time, or robustness margins. However, they require either a physical model of the plant or experimental identification of a suitable approximation, both are not trivial to identify.

In the following sections, we will only examine the empirical tuning and rule-based tuning in more detail. The model-based tuning requires a level of understanding in control that is too advanced for this course. However, you can find an introduction to it in the following hidden section.

Empirical tuning

_{This video demonstrates a hands-on procedure for adjusting the three gains step by step, while observing the effect on the system’s response.}

When no model is available, or when a quick adjustment is required, empirical tuning can be applied. The procedure is conceptually simple. One begins with a controller that contains only proportional action, with integral and derivative gains set to zero. The proportional gain is then increased gradually until the system responds quickly but remains stable. At this stage, some overshoot is usually present.

Next, integral action is introduced to eliminate steady-state error. The integral gain is increased carefully, since excessive integral action can make the response sluggish or even destabilize the system through oscillations.

Finally, derivative action is added to provide damping. This reduces overshoot and oscillations but must be used with caution, because high derivative gains amplify measurement noise and delays. If the response becomes noisy, the derivative gain should be reduced or filtered as will be presented in a next section.

This is the method that you most probably have implemented when doing the simulation exercise. Though iterative, it is straightforward and builds valuable intuition. However, it may take considerable time to converge to acceptable performance, and if applied carelessly on hardware, it can stress the actuators or destabilize the system.

Rule-based techniques

Although empirical tuning provides an intuitive understanding of how each term of the PID controller affects the response, it is neither efficient nor reliable in many practical situations. The iterative trial-and-error process may require significant time, and the final result often depends on the skill and experience of the engineer. Moreover, manual tuning may lead to aggressive parameter values that cause actuator saturation or unstable oscillations. To overcome these limitations, rule-based tuning methods have been developed. These methods are based on systematic procedures derived from empirical observations and experimental studies, and they provide reproducible results with less effort.

(a) Closed-loop Ziegler–Nichols method

This video illustrates the closed-loop Ziegler–Nichols method, from the ultimate gain test to the calculation of controller parameters.

The most well-known procedure is the closed-loop Ziegler–Nichols method (ultimate gain test). Its principle is to experimentally determine the ultimate gain $K_u$ and the ultimate period $P_u$, and then compute the PID parameters through simple formulas.

Steps:

1. Disable integral and derivative actions.
2. Increase the proportional gain $K_p$ until the system oscillates with constant amplitude.

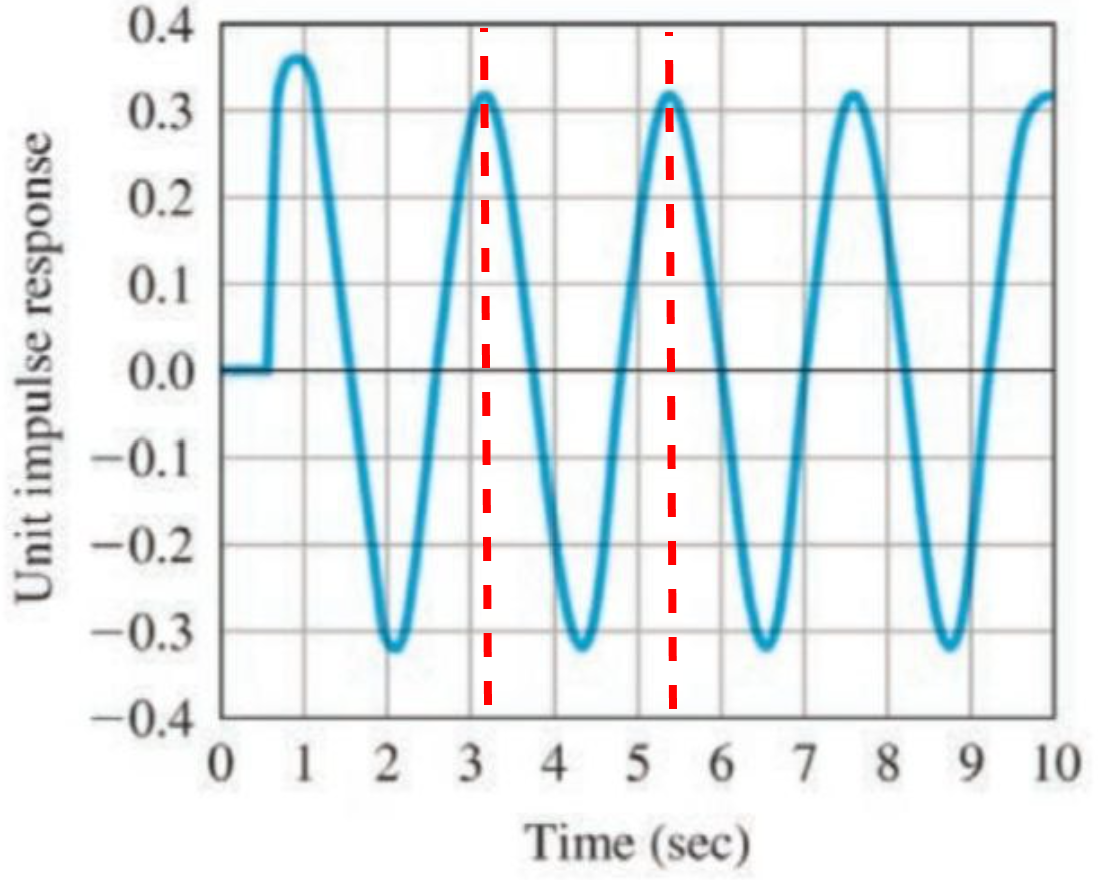

3. Record the gain value $K_u$ (ultimate gain) and the oscillation period $P_u$ (ultimate period).
4. Use the Ziegler–Nichols table to calculate controller gains:

This method is simple and systematic, but it has drawbacks: the sustained oscillations can be unsafe for sensitive plants, and the resulting tuning often yields aggressive responses with overshoot. Thus, the results are usually used as starting points.

(b) Open-loop Ziegler–Nichols method

The open-loop Ziegler–Nichols method is based on the open-loop step response of the plant. It is particularly useful when closed-loop experiments are not possible or would endanger the system.

The procedure is as follows:

1. Apply a unit step input to the plant in open-loop.

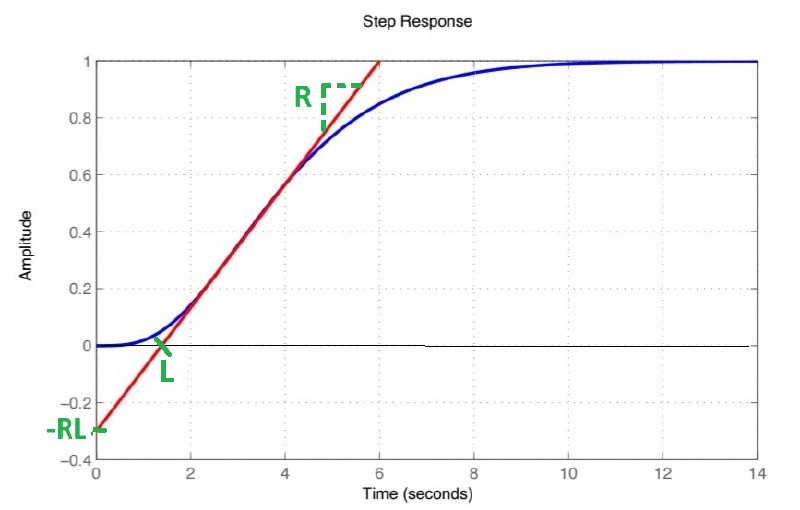

2. Record the output response and approximate it by a first-order-plus-dead-time (FOPDT) model $G(s) \approx \frac{K}{T s + 1} e^{-Ls}$ where $K$ is the process gain, $L$ is the apparent dead time, $T$ is the process time constant. In practice, $L$ and the slope $R$ of the tangent at the inflection point are measured from the step response curve.



3. Use the Ziegler–Nichols open-loop tuning rules (depending on controller type):

   Controller	$K_p$	$T_i=\frac{K_p}{K_i}$	$T_d=\frac{K_d}{K_p}$
   P	$\frac{1}{RL}$	–	–
   PI	$\frac{0.9}{RL}$	$\frac{L}{0.3}$	–
   PID	$\tfrac{1.2}{R\,L}$	$2L$	$0.5L$

This method is safer because it avoids driving the system to instability. However, its accuracy depends on how well the process can be approximated by the FOPDT model. Moreover, like the closed-loop version, it tends to produce aggressive tuning and may require refinement.

In summary, both Ziegler–Nichols methods provide systematic, quick rules for tuning. The closed-loop test is often more direct but riskier, while the open-loop method is safer but relies on model approximation. In both cases, the obtained controller should be viewed as an initial design, to be further refined for robustness and performance.

Mathematical exercise

This exercise is taken from Franklin, Powell, & Emami-Naeini (2015), Problem 4.36 in *Feedback Control of Dynamic Systems* (7th ed., Pearson).

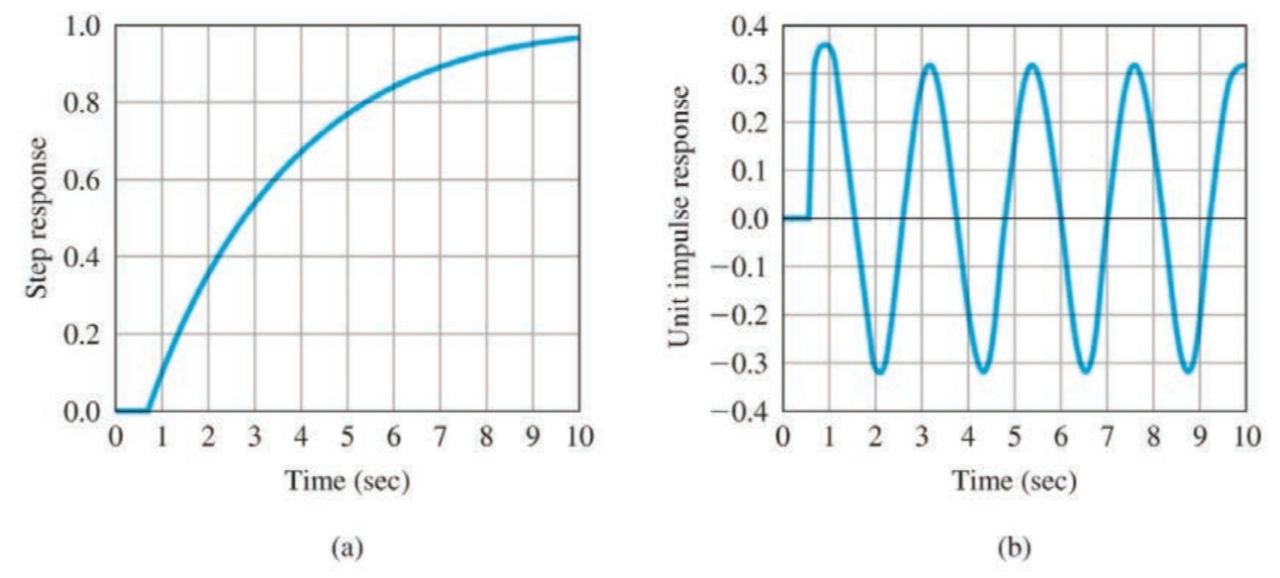

The unit-step response of a paper machine is shown in Fig. X(a) where the input into the system is stock flow onto the wire and the output is basis weight (thickness). The time delay $L$ and slope $R$ of the transient response may be determined from the figure.

(a) Find the proportional, PI, and PID-controller parameters using the open-loop Ziegler–Nichols method.

(b) Using proportional feedback control, control designers have obtained a closed-loop system with the unit impulse response shown in Fig. X(b). When the gain $K_u = 8.556$, the system is on the verge of instability. Determine the proportional, PI, and PID-controller parameters according to the closed-loop Ziegler–Nichols method.

Solution

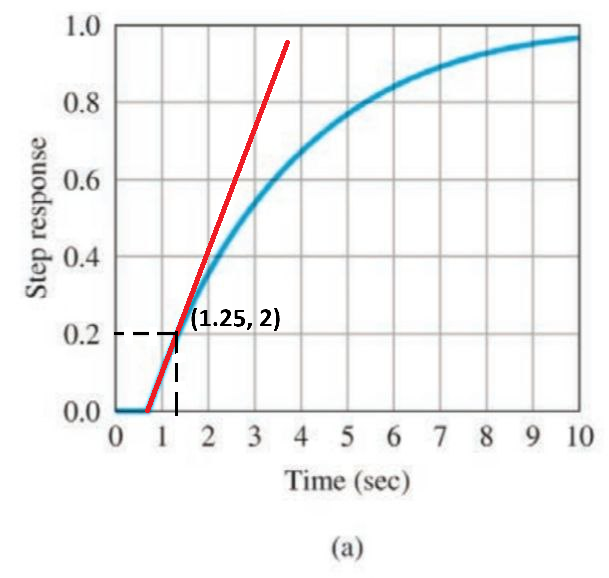

How to obtain $L$ and $R$ from the step response ?

1. Locate the inflection point of the step response.
2. Draw the tangent line at that point.
3. $L$ is the time where this tangent intersects the axis $y=0$ (time axis) which corresponds to the delay time in this particular example.
4. $R$ is the slope of the tangent. For example, you can read two points on the tangent and compute $R=\dfrac{\Delta y}{\Delta t}$.

Therefore, $L \approx 0.65 sec$ and $R=\frac{0.2}{1.25 - 065}=0.3$

From the open-loop Ziegler Nichols table :

• P: $ K = \frac{1}{RL} = 4.62 $

• PI: $ K = \frac{0.9}{RL} = 4.15, \quad T_I = \frac{L}{0.3} = 2.17 $

• PID: $ K = \frac{1.2}{RL} = 5.54, \quad T_I = 2L = 1.30, \quad T_D = 0.5L = 0.33 $

(b) From impulse response:

From the oscillation we find $P_u \approx 2.33 \,\text{s}$.

As given in the question $K_u = 8.556$, from the closed-loop Ziegler Nichols table, we find :

• P: $ K = 0.5 K_u = 4.28 $

• PI: $ K = 0.45 K_u = 3.85, \quad T_I = \frac{P_u}{1.2} = 1.86$

• PID: $ K = 0.6 K_u = 5.13, \quad T_I = \frac{P_u}{2} = 1.12, \quad T_D = \frac{P_u}{8} = 0.28$

---

Other classical rule-based tuning methods also exist. Cohen–Coon, for instance, offers more nuanced formulas that account for the ratio of dead time to time constant, making it better suited for systems where the delay is a significant fraction of the dynamics. You can explore these methods in depth in this excellent resource: PID Tuning via Classical Methods

Anti-windup

_{"Douglas, B. (2018) Anti-windup for PID Control | Understanding PID Control, Part 2. YouTube video, 5 June. Available at: https://www.youtube.com/watch?v=NVLXCwc8HzM"}

This short video by Brian Douglas, part of the MATLAB Tech Talk series, clearly explains the concept of integrator wind-up in PID controllers and why it occurs when actuators saturate. It, then, walks through the anti-windup strategy, showing how to modify the controller to avoid performance degradation.

Integral windup is a common problem encountered in PID controllers, particularly when the actuator driving the system reaches its saturation limits (i.e., its maximum or minimum output capacity). If the control error persists while the actuator is saturated, the integral term will continue to accumulate to a very large value, leading to a control signal that cannot be physically implemented. When the error finally changes direction or is corrected, it takes a significant amount of time for the integral term to “unwind” before the control signal moves back within the actuator’s operational range. This delay causes large overshoots and sluggish system behavior.

To mitigate the detrimental effects of integral windup, various anti-windup schemes are employed:

• Clamping the Integrator: This is one of the simplest and most common methods. The integration is stopped (or clamped) when the actuator output reaches its limits and the control signal is attempting to drive it further in the same direction.
• Conditional Integration: In this approach, the integral term only updates when the control signal is within the actuator’s non-saturated operating limits.
• Back-calculation: This method uses the difference between the saturated control signal (what was actually applied) and the unsaturated control signal (what the controller calculated) to “reset” or adjust the integral term, preventing it from accumulating excessively.

Anti-windup mechanisms may seem like a secondary detail compared to the design of controller gains, but in practice they are crucial for stability and performance. Even a well-tuned PID controller can fail dramatically if integral windup is not managed, especially in systems where actuators frequently reach their limits. Therefore, implementing an anti-windup scheme is a standard step in professional control engineering practice.

Noise filtering for derivative action

_{“Douglas, B. (2018) Filtering Derivative Action | Understanding PID Control, Part 3. YouTube video, 12 June. Available at: https://www.youtube.com/watch?v=7dUVdrs1e18”}

This short video explains why the derivative term amplifies high-frequency noise and shows how a low-pass filter on the D path mitigates the problem without sacrificing the useful damping of derivative action.

One of the main limitations of the derivative term in PID controllers is its high sensitivity to measurement noise. The derivative is, by definition, the slope of the error signal; small high-frequency fluctuations which characterize noise are therefore amplified in the control output, which can lead to erratic commands, unnecessary actuator wear and even loss of closed-loop stability.

To see where this sensitivity arises in practice, recall that the derivative is commonly computed in discrete time with a finite difference: $$ \frac{de}{dt}(t_k)\;\approx\;\frac{e(t_k)-e(t_{k-1})}{\Delta t}. $$ When $\Delta t$ is small, even tiny sensor variations yield large derivative estimates. The controller reacts not only to the true dynamics but also to spurious noise.

The standard solution is to filter the derivative action so that it responds to genuine trends in the error while attenuating high-frequency components. This is implemented by inserting a first-order low-pass filter in the D path. A widely used form is $$ G_D(s)\;=\;\frac{T_d\,s}{1+\tfrac{T_d}{N}\,s},\qquad N\gg 1, $$ where $T_d$ is the derivative time constant and $N$ is the derivative filter coefficient. At low frequencies (where the plant dynamics lie), à $G_D(s)\approx T_d s$ and the controller behaves like an ideal derivative, providing phase lead and damping. At high frequencies (where noise dominates), the gain approaches a finite value $\approx N$, preventing uncontrolled amplification and keeping the commanded input smooth.

This filtered derivative also has a clear intuitive interpretation. Using a first-order Taylor expansion, $$ e(t+T_d)\;\approx\;e(t)+T_d\,\frac{de}{dt}(t), $$ a PD controller can be viewed as proportional control applied to a short extrapolation of the error $T_d$ seconds into the future: $$ u(t) = K_p e(t+T_d). $$ Filtering preserves this predictive quality while ensuring that rapid, high-frequency fluctuations (typical of sensor noise) do not dominate the control effort.

In practice, almost every industrial PID implementation includes this modification by default. The parameter $N$ must be tuned:

• larger $N$ (smaller effective filter time constant) yields a more responsive derivative but passes more noise
• smaller $N$ provides stronger smoothing at the cost of added lag. Selecting $N$ is therefore a compromise between responsiveness and robustness and should be treated as an essential part of PID tuning.

Programming exercise: Make your PID more robust

_{“Lynch, K. (2015) Improving the basic PID control algorithm. Northwestern Robotics. YouTube video, 8 December. Available at: https://www.youtube.com/watch?v=La9vll93h44”}

Kevin Lynch demonstrates three practical upgrades to a basic PID: low-pass filtering the derivative to tame sensor noise, clamping the integral (anti-windup) so it can’t run away during saturation, and limiting the actuator command to its feasible range. These tweaks make a textbook PID behave robustly on real hardware.

As presented in the last sections and in the last video, basic PID loop is good but it works only in ideal systems. real systems need a few upgrades to behave robustly. Your task is, therefore, to make the PID you designed previously more robust by fillin g in the missing pieces to implement:

Check Answer

eint   = 0
eprev  = 0
edot_f = 0

# tunables
tau = 0.05
umin, umax = -1.0, 1.0
eint_min, eint_max = -0.5, 0.5

repeat every dt seconds {
    e    = desired - read_sensor()
    edot = (e - eprev) / dt

    # 1) derivative low-pass (first-order)
    alpha  = dt / (tau + dt)              # 0 < alpha < 1
    edot_f = (1 - alpha) * edot_f + alpha * edot

    # 2) integrate + clamp (anti-windup)
    eint = eint + e * dt
    eint = max(eint_min, min(eint, eint_max))

    # 3) unsaturated control
    u_unsat = Kp * e + Ki * eint + Kd * edot_f

    # 4) actuator saturation
    u = max(umin, min(u_unsat, umax))

    eprev = e
    send_control(u)
}

Do you want to try a more complex simulation ?

For those who enjoyed experimenting with the simple second-order system, here is a chance to push things further.

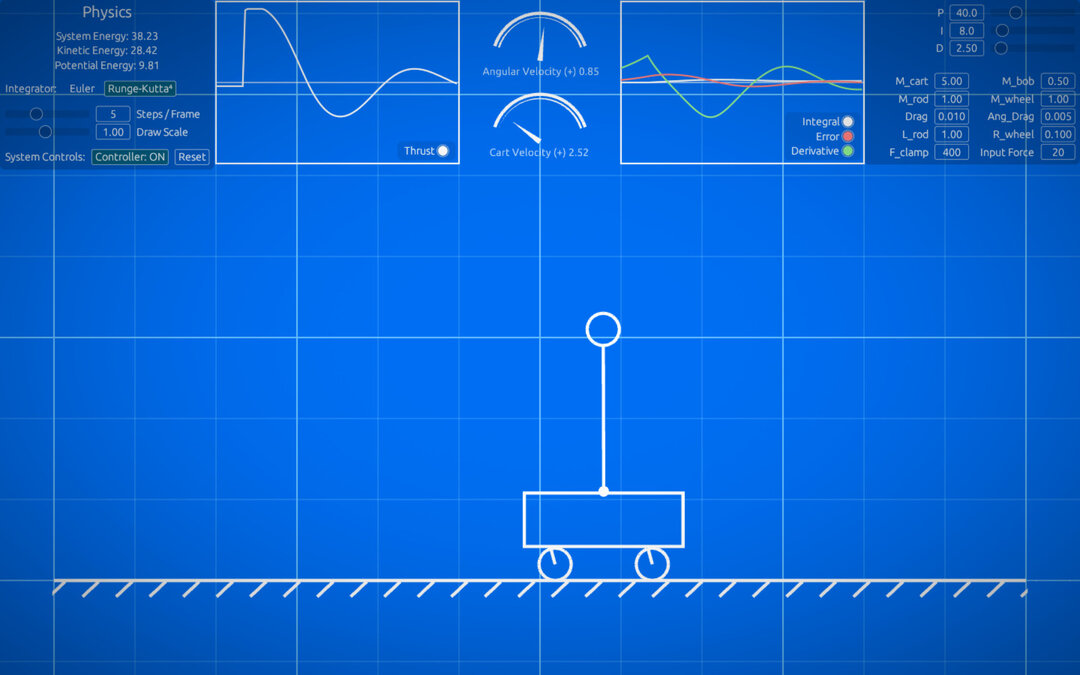

This interactive cart–pole PID balancer lets you test your controller design on a much more challenging system: balancing an inverted pendulum.

Try the simulation here (source code available on GitHub).

The appeal of this simulation is that it exposes you to many parameters you can tune in real time: PID gains, cart mass, pole length, and more. Each change produces an immediate and often dramatic effect on stability.
It is not only fun to play with, but also an excellent way to build intuition about how parameter choices interact with system dynamics in a real-world–like scenario.

Do you want to implement a real project ?

_{Circuit Helper (2024). PID Control Explained: The Ultimate Guide from Basics to Implementation. YouTube video, Dec. Available at: https://www.youtube.com/watch?v=osd7jbJpGLA}

This project demonstrates how to implement a practical PID controller using a Raspberry Pi Pico, a resistive heater, and a thermocouple. By tuning the constants Kp, Ki, and Kd, you can directly observe overdamped, underdamped, and critically damped system responses.

Having completed this course, you now have all the foundations needed to bring PID control to life in a real system. This project is the perfect way to put your knowledge into practice: you will see the theory from the lectures applied directly to hardware, and experience how tuning the controller affects the behavior of a real process.

The setup requires only simple and affordable components such as a Raspberry Pi Pico (or ESP32 alternatives), a resistive heater, and a thermocouple sensor, along with basic prototyping gear like a breadboard and jumper wires. If you’d like to find direct links to these components, check the description of the video.

This is your opportunity to take the concepts you’ve mastered and transform them into hands-on skills. Try it out, experiment with the tuning, and experience PID in action for yourself!

Credits

This course was created by Salim Boussofara, MSc in Robotics at EPFL, and funded by IEEE RAS and EPFL.

It makes use of selected material from:

• K. J. Åström and T. Hägglund, Advanced PID Control. ISA, 2006. [Online]. Available: https://skoge.folk.ntnu.no/puublications_others/books/Åstrom-2006_Advanced%20PID%20Control/3.PID%20Control.pdf
• Y. Li, K. H. Ang, and G. C. Y. Chong, “PID control system analysis and design”, IEEE Control Systems Magazine, vol. 26, no. 1, pp. 32–41, 2006. Available: https://eprints.gla.ac.uk/3815/
• L. Llamas, “Control theory: Arduino PID controller”. Available: https://www.luisllamas.es/en/control-theory-arduino-pid-controller/

It has also been inspired by:

• A. Karimi, Feedback Control Systems, Lecture notes for Control Systems and Discrete-Time Control, EPFL, Fall 2022.

Ressources

Back to Top
